Introduction
Tools
-

                  -
            Turn the boombox around to see the back, and then flip it upside down.
-
            Insert a 2.5mm flathead driver into the two holes next to the battery compartment.
-
            Turn the driver counterclockwise several times to loosen and pull out the 17mm screw.

-

-

                  -
            Peel off the two black square foams in front of the battery compartment to reveal a screw under each one.

-

-

                  -
            Remove the two 8mm screws using a 2.5mm flathead driver.
-
            The front grey panel will loosen up once the final screw is removed.

-

-

                  -
            Turn the boombox on its back.
-
            Release the front panel by pushing down on the latches holding the panels together.
-
            There are four silver latches on the top side of the panel and one on the bottom.

-

-

                  -
            Turn the boombox around to view the back and lift the handle up.
-
            Using the same driver with 2.5mm flathead, remove the two 14mm screws under the handle.
-
            Gently lift the black top but do not pull completely away.

-

-

                  -
            Face the bottom of the opened boombox, and detach the front panel from the back in the following order:

-

-

                  -

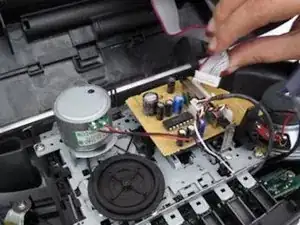

            Unplug the 4 wires (1 red, 2 black, 1 white) from the yellow motherboard on the front panel, by pulling upwards.
-

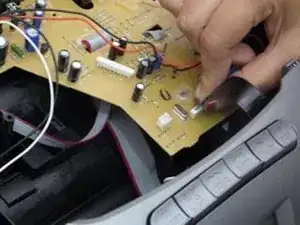

            Pull the black tape attached to the white plug on the yellow motherboard by tugging upwards.
-

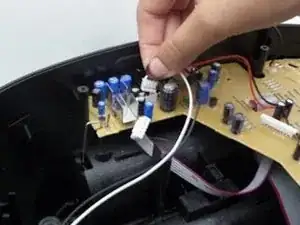

            Detach the thicker, white and pink cord on the smaller yellow plate on the front panel by pulling away.

-

-

                  -

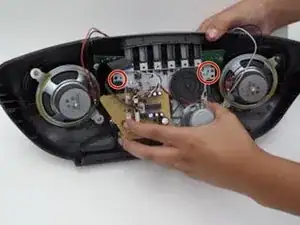

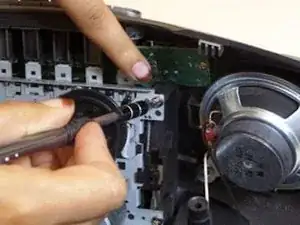

            Facing the inside of the front panel, on the corners of the grey plate, there are four screws. Unscrew these with a phillips 1.

-

-

                  -

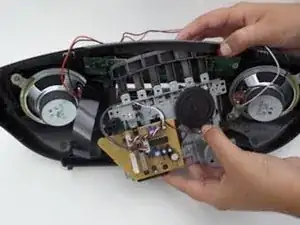

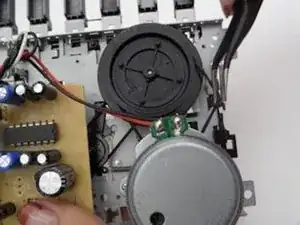

            Face the inside of the front panel. Push the buttons down gently to slide the cassette player unit out.

-

To reassemble your device, follow these instructions in reverse order.
