Introduction
Follow these few steps to easily set up your new bObi Pet's battery or install a new one.
For a video tutorial, go to: https://www.youtube.com/watch?v=qpfeK7GP...
Tools
Parts
-
-

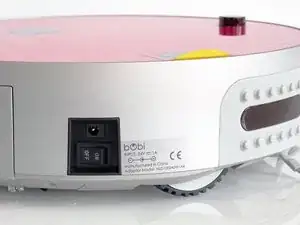

Make sure bObi Pet's power switch is turned OFF.
-

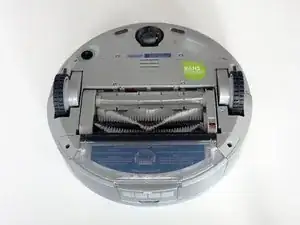

Then, flip bObi Pet over onto a flat surface, so the wheels point up.
-
-
-

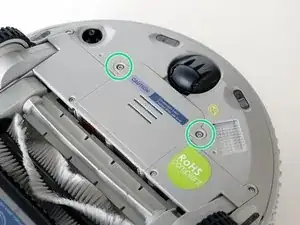

Remove the two screws holding her battery cover in place.
-

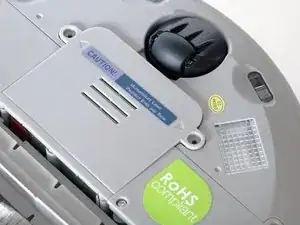

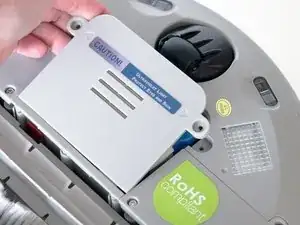

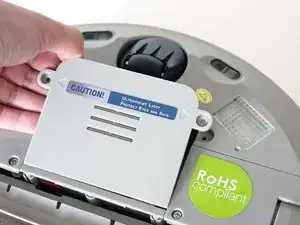

Remove the battery cover. Keep the cover and screws close by for the next step.
-
-
-

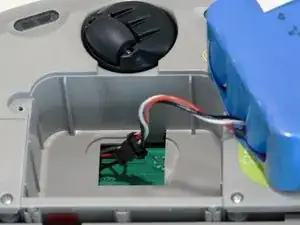

Plug the new battery in at the circuit junction.
-
Tuck the wire into the side of the compartment.
-

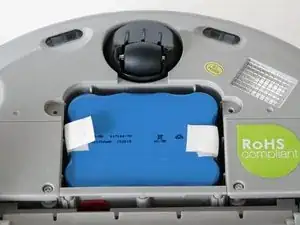

Ensure the wires are not in the way, then, slide the battery straight down.
-
-
-
Replace the battery cover so that it lies flat.
-

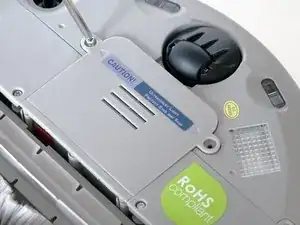

Reinstall the 2 screws to finish the installation process.
-
After finishing the battery installation correctly, turn bObi Pet's side power switch to ON and your robotic vacuum should be ready to work.
