Installing the Battery for a bObi Robotic Vacuum

Written By: Chelsea
  • Comments: 0
Installing the Battery for a bObi Robotic Vacuum

Difficulty

Very easy

Steps

3

Time Required

5 minutes

Introduction

How to properly install bObi's battery after initial purchase or in case of replacement.

  1. BCtYK4nvGuiCgmPE
    BCtYK4nvGuiCgmPE
    sCiikBcfeFLcKGE2
    FeCcUjOy2SlIkjAv

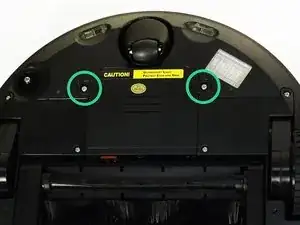

    • Use a phillips head screwdriver to remove the two screws holding the battery cover down.

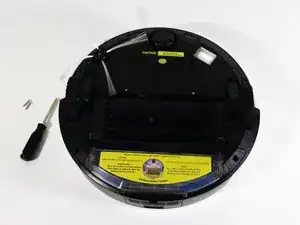

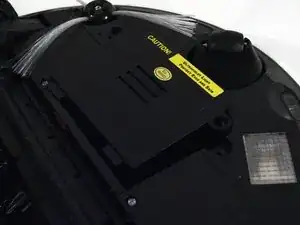

    • Lift the battery cover up.

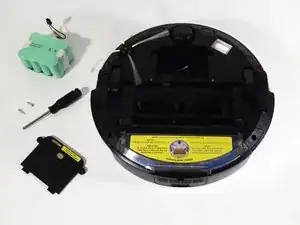

  2. IdMMoApTvRCI3X4D
    IdMMoApTvRCI3X4D
    LrETLBLZEwDWVLDI
    kuEltUxwMU2Y14QT

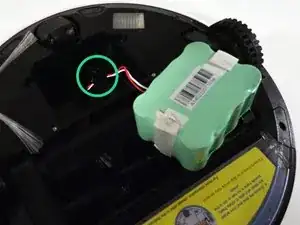

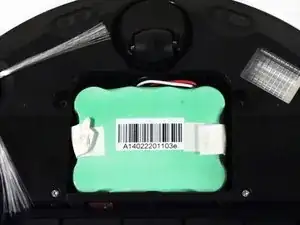

    • Plug in the battery's circuit plug.

    • Lower the battery into bObi.

    • Tuck the wire into the side of the battery. do not push it underneath the battery itself.

  3. VUMFWSgFBHOvvIgV
    VUMFWSgFBHOvvIgV
    CfJNruBC2y2wQGnZ
    TduiINUptZmoNJCS

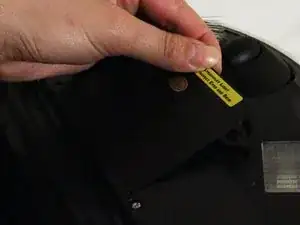

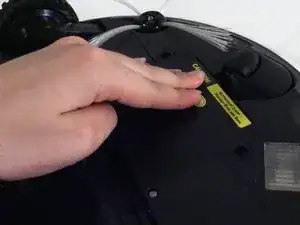

    • When both are lowered into the compartment, replace the battery cover. Ensure it lies flat overtop the battery.

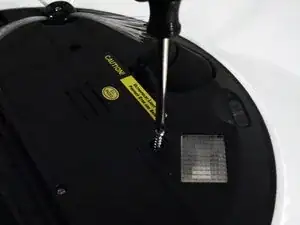

    • Reinstall the two screws to finish assembling bObi's battery.
