How to disassemble the JBL Charge 2 for replacing speakers.
-
-
Using a Phillips #1 screwdriver (PH1), remove the (4) four 8mm screws.
-

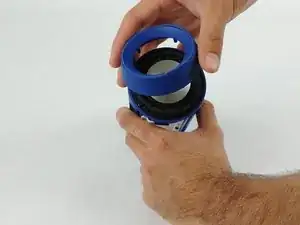

Remove the end cap of the device. Repeat the same process to remove the other end cap.
-
-
-

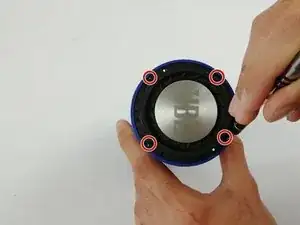

To remove the end diaphragms, use a Phillips #1 screwdriver (PH1) and remove the (4) four 6mm screws.
-

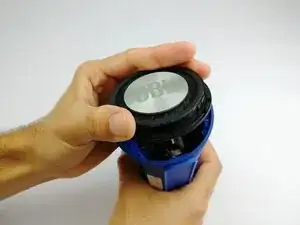

Twist off the end cap and remove them from the device.
-
-
-

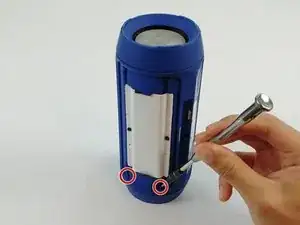

Use a Phillips #1 screwdriver (PH1) to remove the (2) two screws from the battery cover.
-

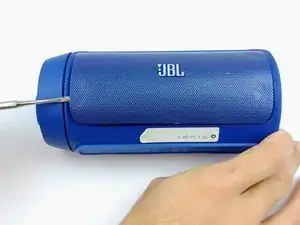

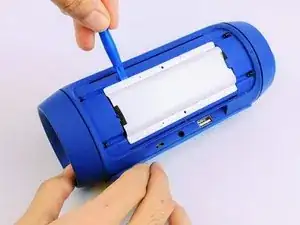

Pry away the plastic battery cover with a plastic spudger.
-
-
-

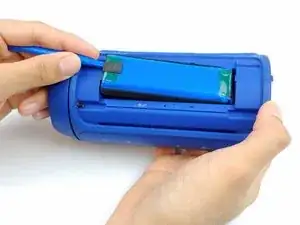

Scrape the battery wire sealant off with a plastic opening tool, and ensure it is free of the body of the speaker and wires.
-

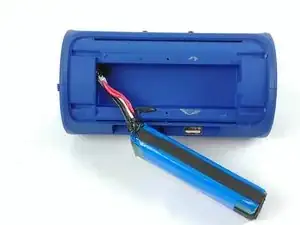

Slide the battery free.
-
-
-
Use the Phillips #1 screwdriver (PH1) to remove the (8) eight screws.
-
Pull out the speakers from the device.
-
-
-
Disconnect the wiring from the speaker by using the fine tip pry tool.
-
Remove the speakers from the device.
-
To reassemble your device, follow these instructions in reverse order.
Please note BOTH screen covers should be removed for the battery replacement
Shane Phillips -
Only the rear screen need be removed. There will be the battery housing(black plastic piece), remove 5 black screws with #1 Phillips. Gently working from side to side with spudger tool dislodge battery housing. Gently unplug battery connector, and remove battery housing. Remove 1 black Phillips screw and remove cover. Remove battery.
