Introduction
If you are experiencing any difficulties using the buttons on your JBL Pulse 2, you may need to replace the button circuit board.
-
-
Remove the rubber rings from either end of the device.
-

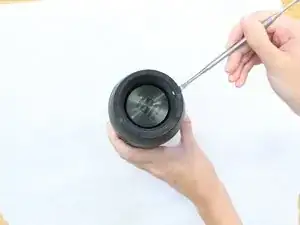

If there is difficulty in lifting the rings from the device, use the metal spudger.
-
-
-

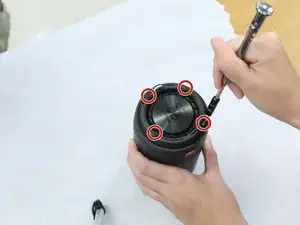

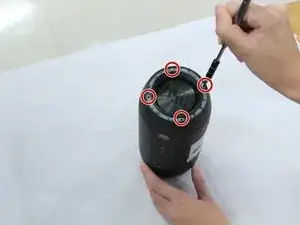

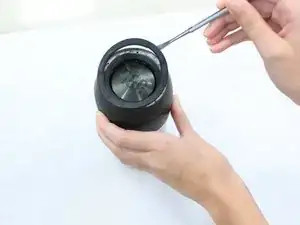

Remove the four 4.8mm Phillips #1 screws from each end of the device with the Phillips head screwdriver.
-

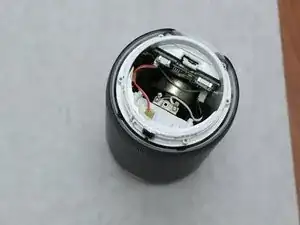

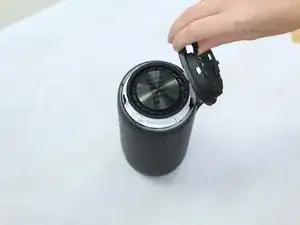

Lift the end pieces off of the device.
-
-
-

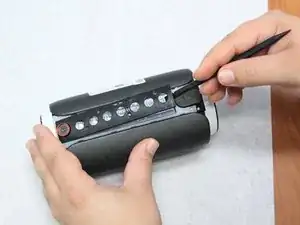

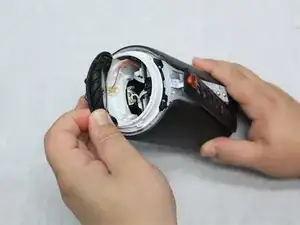

Peel one end off and slowly draw it across the length of the device until you get to the other side.
-
-
-

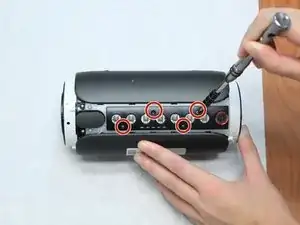

Remove the four 7.9mm Phillips #1 screws along the black centerpiece of the device between the camera and the auxiliary port.
-

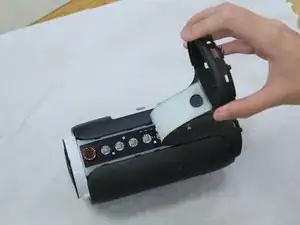

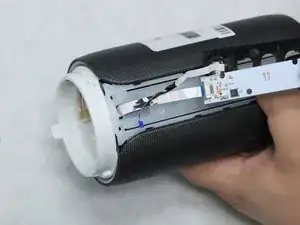

Lift up the casing and circuit board but do not try and remove the ribbon wires.
-
-
-

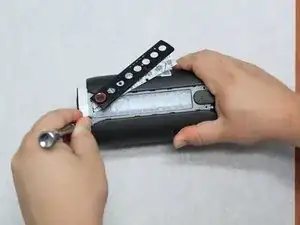

Remove the cover from the end that the ribbon wires are attached to. It should peel off easily.
-
-
-

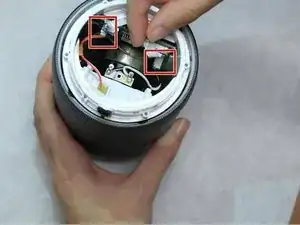

Unlatch the mechanism holding the ribbon wires in place then disconnect them from the motherboard.
-
To access the wires, remove some of the black glue holding them in place with the spudger.
-
To reassemble your device, follow these instructions in reverse order.
