JBL Xtreme 3 Battery Replacement

Written By: Maria
  • Comments: 2
JBL Xtreme 3 Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

20 - 40 minutes

Introduction

If the battery in your JBL Xtreme 3 (JBLXTREME3BLKAM) portable Bluetooth speaker is failing or has completely died, this guide will instruct you on replacing the battery.

Please review information about proper battery disposal.

Warning: Please take precautions if you suspect a swollen battery.

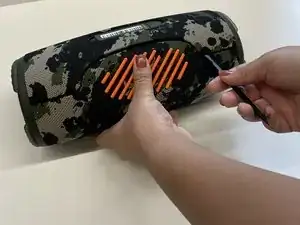

  1. 1KcFmEuflreXpfBv

    • Begin by placing the speaker with the grooves on the bottom of the device facing towards you.

    • Use a spudger to carefully pry around the seams of the speaker to open and unlatch the outer shell.

    • Use your hands to finish removing the outer case of the device.

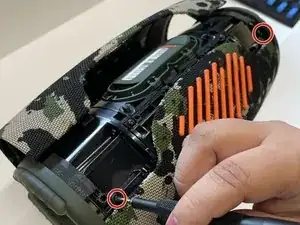

  2. EmAxH3oX2BG6hY3M

    • Use a Phillips #0 screwdriver to remove the two 10 mm screws.

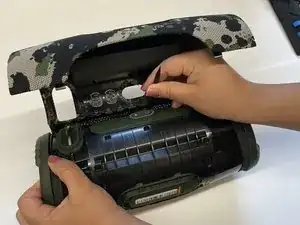

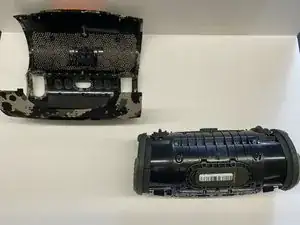

  3. uRxm1BxbgYrQPFtf
    uRxm1BxbgYrQPFtf
    PKYxmUgO121nAvaq

    • Use a spudger to carefully pry open the latch located above the control button as shown in the photo. Please be careful!!!

    • Remove the speaker from the shell.

    II have found today it is easier to pop the latches for the back half and then remove the two screws holding the front half.
    Then proceed to pry the front half off instead of prying near the control buttons at the hinge.

    Nicholaschristianson -

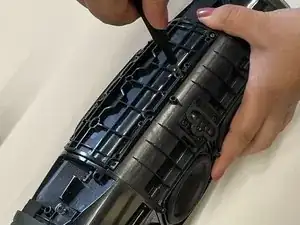

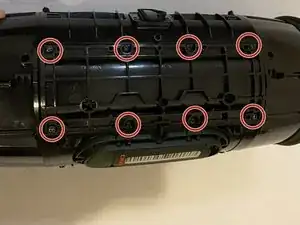

  4. TCIiEXYo5uIJw4J2
    TCIiEXYo5uIJw4J2
    uGXaIgmooMOGMVBs

    • Turn the device so that the control buttons are facing down.

    • Use a Phillips #1 screwdriver to remove the eight 10 mm screws from the panel.

    • Carefully remove the panel.

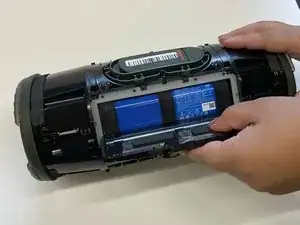

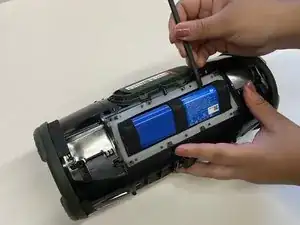

  5. Y5mr4ldyCHlbeUmM
    Y5mr4ldyCHlbeUmM
    KFVsVVqiTS54ICPd

    • The battery is connected to a cable. Use gentle force.

    • Use the spudger to carefully pry the battery out.

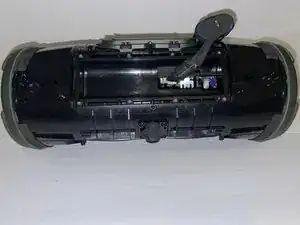

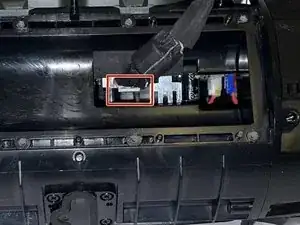

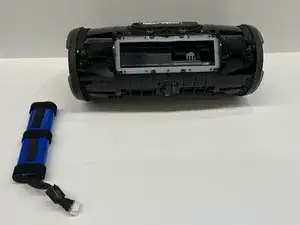

  6. jPHF1aDtyWtcFjN6
    jPHF1aDtyWtcFjN6
    HD5yL5JJrICkidfP
    XHVoHWaSqVCbeEP3

    • Use the plastic opening tool to press the white notch while simultaneously unplugging the battery connector.

    • Plug in the replacement.

    • Make sure the new battery is secure. Turn on the device to ensure that the battery is connected properly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
