JBL Xtreme battery replacement

Written By: Bert
  • Comments: 6
JBL Xtreme battery replacement

Difficulty

Easy

Steps

6

Time Required

10 minutes

Introduction

This will show how to change the battery .

  1. OyYZARrR4i2ePhaL

    • 8.4 V battery pack for the JBL Extreme.

  2. Ssd5aKnKYgsUsGsi

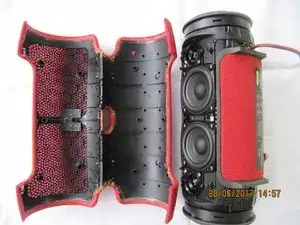

    • Unscrew the screws and remove the shell.

  3. hc5eZdgTK2EYvmXo

    • Remove the battery pack by unscrewing the 8 screws. Unplug the battery pack. Drill a hole. Seal holes with hot glue for air-tightness.

  4. cfxmoHq5BqHhV2VG
    cfxmoHq5BqHhV2VG
    k1HJgOfO1gpgLASA

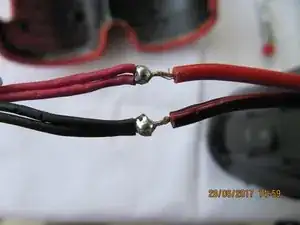

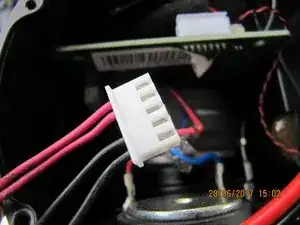

    • Solder the positive wires together, and solder the negative wires together. Use a 5.5 x 2.1 hollow DC connector for the power supply. Insulate the cable ends (Heat shrink wrap, electrical tape, etc.)

  5. mEWutMyRLBVuSGyw

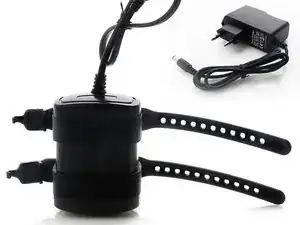

    • Battery, 8.4 Volt. 13200mAh 8.4V Rechargeable Battery Pack Charger for Bicycle Light-XML-T6

  6. MeUjlQ1RPLVbTywy

    • Solarstorm 2S2P 18650 Battery Case.

    • 4xPanasonic NCR18650B 3,7V 3400mAh=14400 mAh

    • + 5V USB ON/OFF Button

Conclusion

To reassemble your device, follow these instructions in reverse order.
