Introduction
A speaker in an acoustic device that plays music out loud held connected inside a device. It is usually built in-place so disassembly will be involved.
Tools
-
-
First, open the dust cover and grab it by the hinges and pull up until it slides out.
-
Then, using a screwdriver unscrew the 3 screws on each side and remove the top layer of the record player. The top should pop out.
-
-
-

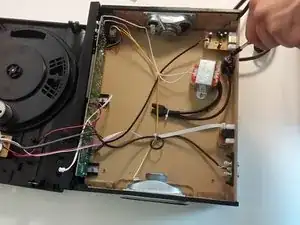

You should see the speakers(one on both side). From here, you want to unscrew the three screws holding them in place, using the same head as the previous step.
-
-
-

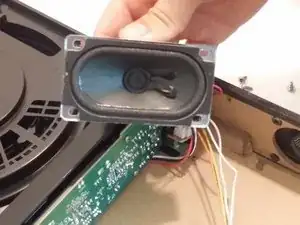

Carefully remove the speakers from the device, being careful not to harm any components of the speaker.
-
-
-

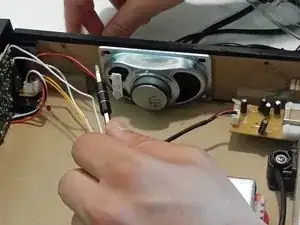

Once the speaker is out of the device, you should use a soldering iron to take off the wires on the current broken speaker, and put them to the new speaker using a soldering iron.
-
To reassemble your device, follow these instructions in reverse order.
One comment
What type of speakers do I need to buy?
