Keurig B60 Power Cord Replacement

Written By: Jake Wynn
  • Comments: 1
Keurig B60 Power Cord Replacement

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

This replacement involves removal of the bottom panel. Certain tools are required.

  1. GSJuN6iVqfGOtUrn
    GSJuN6iVqfGOtUrn
    SGnwTYMBcNaKDj6i

    • Ensure Keurig is powered off and unplugged.

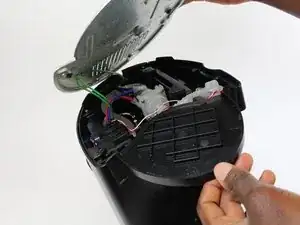

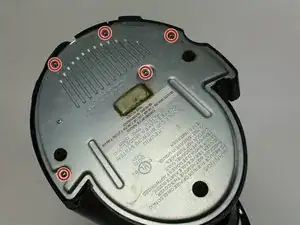

    • Turn the Keurig over, and unscrew five 25.5 mm Phillip #1 screws, and remove bottom panel.

  2. 2GjXtDOPNTgspfQD
    2GjXtDOPNTgspfQD
    uWcEAavYmFkP35lb
    PCDCWOyMVYMSpksr

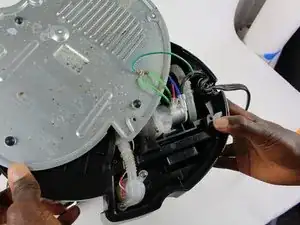

    • Unwind the Power Cord from the wire channel

  3. eMGQnCcX2BhvjVCM
    eMGQnCcX2BhvjVCM
    lqoxjB1pPEHYoKEy
    igPb1raNq4NKaBWb

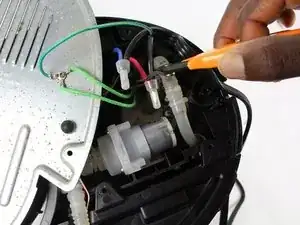

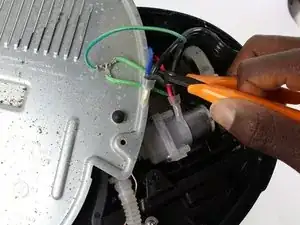

    • Make three cuts along the wires shown

    • Solder the Power Cord Replacement to the same wire attachments

Conclusion

To reassemble your device, follow these instructions in reverse order.
