KitchenAid KHM512ER Beater Rings Replacement

Written By: Brad Daniels
  • Comments: 3
KitchenAid KHM512ER Beater Rings Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

Are your beaters not staying in? You may need to replace the beater rings.

  1. yKl6R6mZhjDUdat5
    yKl6R6mZhjDUdat5
    BTggIUPPvEYNhNJF

    • Insert the back of a plastic opening tool into one of the beater holes

    • Apply force to pull the circular plastic part off.

    • If necessary, use the other side of the plastic opening tool to pry the circular plastic part off.

  2. h3FwgnDddyCjSSJo
    h3FwgnDddyCjSSJo
    1E6geHIeXbtgEmZO

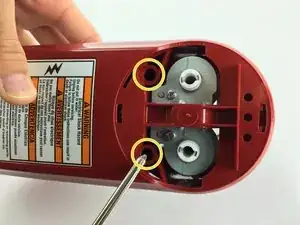

    • Use a Phillips #2 screwdriver to remove the two 20mm screws holding the bottom plastic piece in place.

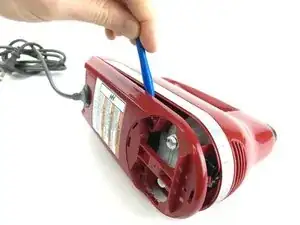

    • Remove the bottom plastic piece using a plastic opening tool.

  3. hKatAwZNsQLjLTeg
    hKatAwZNsQLjLTeg
    rpTrXDXa4gUOOmBZ

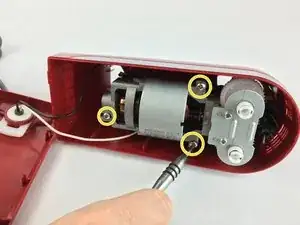

    • Using a Phillips 2 screwdriver, remove the three 20.0mm screws holding the motor assembly in place.

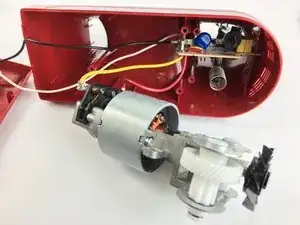

    • Use your hands to remove the motor assembly.

  4. TvvMNK6Yn6K1ehag
    TvvMNK6Yn6K1ehag
    3jwSTPiMUaX2Wm2X

    • Firmly grip the motor in your hand. Using pliers, pull the connectors off the motors.

    • Some force may be required. Be careful not to cut yourself on any electrical components.

  5. GIWZQ4fDTc2EOEJB
    GIWZQ4fDTc2EOEJB
    iajYwtefJAxiUXiL

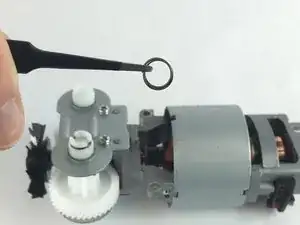

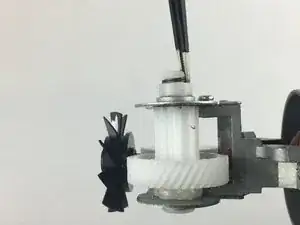

    • Lie the motor down flat on a table.

    • Using a pair of tweezers, remove the ring from the plastic knob.

Conclusion

To reassemble your device, follow these instructions in reverse order.
