Kodak EasyShare Z1015 IS Back Cover Replacement

Written By: katie newman
  • Comments: 1
Kodak EasyShare Z1015 IS Back Cover Replacement

Difficulty

Moderate

Steps

9

Time Required

10 - 15 minutes

Introduction

This tutorial demonstrates how to remove the back cover from the camera.

  1. qiMX43HDIyJJCcul
    qiMX43HDIyJJCcul
    rdtPQGfF3YUocrb2

    • Begin by sliding the switch towards the open symbol. Release your finger from the switch and the battery case will pop open.

  2. IYOTgIWBSpFMSTah

    • Next, press down on the red lever which holds the battery in place.

  3. 44WPNp6xAO6nCTNH
    44WPNp6xAO6nCTNH
    RYmUBhmQfmvMiLDn

    • Once the battery has popped out of the compartment, simply pull it out of the camera.

  4. xGbYtuQIAAHOYLHg
    xGbYtuQIAAHOYLHg
    RyVLTQkeUM5ldXIW
    quwMfvMSywDNtafc

    • Make sure that the lens cover is on the Kodak EasyShare whenever working with one of these guides.

    • Also, make sure to keep track of the screws you remove throughout these step by step guides. Losing a screw could inhibit the ability to reassemble the camera.

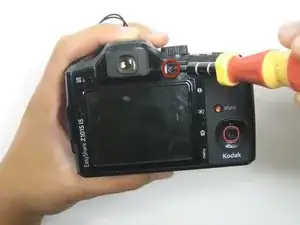

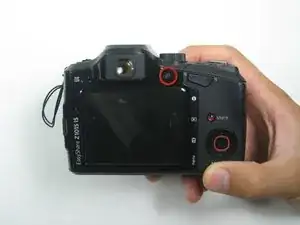

    • Begin by removing the first screw located on the back of the camera.

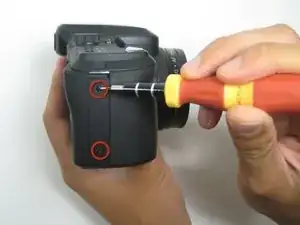

  5. DoA6yK2MW1K6GVfE
    DoA6yK2MW1K6GVfE
    LNj3TvVAIqvAAROR

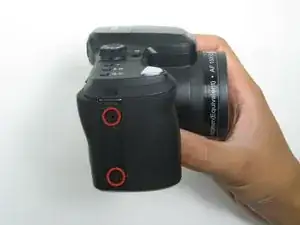

    • Next, remove the two screws located on the right side of the camera.

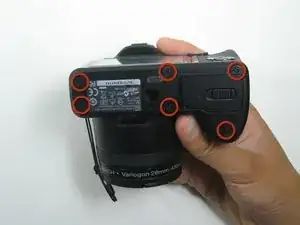

  6. QOPtwMRXKrf353ZB
    QOPtwMRXKrf353ZB
    XHVHMXw1DpRYUUAp

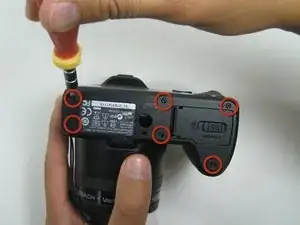

    • After removing the screws located on the right side, remove the six screws located on the bottom of the camera.

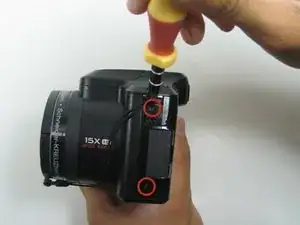

  7. uEFvueBTvWxNjsDK
    uEFvueBTvWxNjsDK
    4uMOkqSxDUwmLtCr

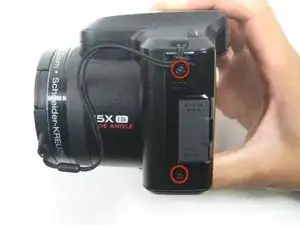

    • Lastly, remove the two screws located on the left side of the camera.

    Trés bon tuto !!! bravo

    Aprés, comment réparer les contacts des touches de selection ,

    André kremer -

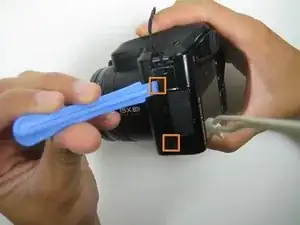

  8. RhhebbFUBLPj6SKD
    RhhebbFUBLPj6SKD
    XmYYQM4M2IlZPVTe
    5qiab54yhJFom5Un

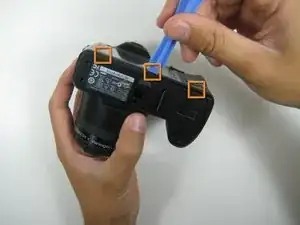

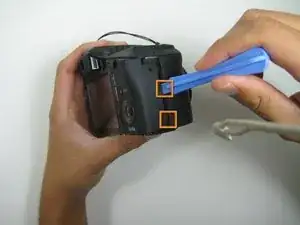

    • Once all eleven screws have been removed, use Plastic Opening Tools to take off the back cover.

    • Insert the plastic opening tool and apply leverage on each side of the camera. The recommended spots to apply leverage are shown in these pictures.

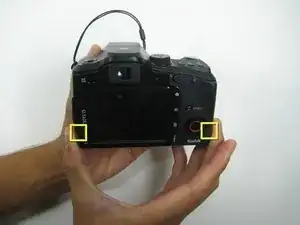

  9. QWvWcwZsAxerb6BI
    QWvWcwZsAxerb6BI
    PqlvVRMmt3wqsFEA
    xSdBBT1JsPNx2oHL

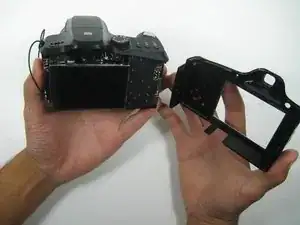

    • Apply pressure on the left and right side of the camera and pull the back cover away from the device.

    • Once the back cover has been successfully removed, you should have a total of eleven screws as well as the bottom cover separated from the camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
