Kodak Easyshare V1003 Lens Replacement

Written By: Sarah Berry
  • Comments: 0
Kodak Easyshare V1003 Lens Replacement

Difficulty

Very difficult

Steps

12

Time Required

45 minutes

Introduction

This guide provides step-by-step instructions for removing and replacing the camera lens. There are two tools required and no safety precautions needed.

  1. rEcv6wNxNUX52V1U

    • Turn off camera by firmly pressing the power button that is located on the top of the camera.

  2. bNIyGBKXZFpPYScq

    • Position camera with the bottom facing up.

  3. VBMfkJ4p5mhTvFdg

    • With your finger, slide the battery cover in the direction of the open arrow.

  4. Mi4H5Mjj6maEBbAX

    • Lift the battery cover up gently.

  5. HbRo3vfBFZQXkVjh
    HbRo3vfBFZQXkVjh
    cJrwG4WByXFhsvHm

    • Gently push the battery down until a click is heard. Battery should release and be lifted out of slot.

  6. oi4FiPi5ML2IoMpe
    oi4FiPi5ML2IoMpe
    UWqFejhXIQTEKICc

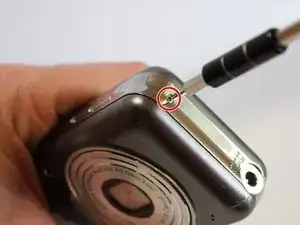

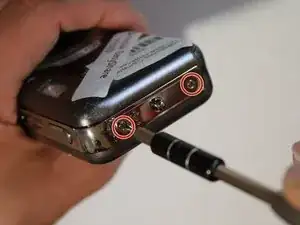

    • Use a J00 screwdriver to remove the five exterior screws.

  7. kWMQ6uxAaubd2KAI

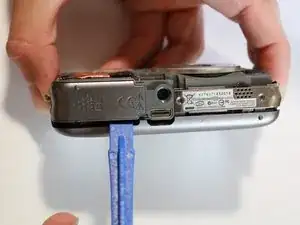

    • Pull the outer case off using the plastic opening tool.

  8. PowDKwxQCOGbLlnF
    PowDKwxQCOGbLlnF
    ewsmTLtSCjfchFKi

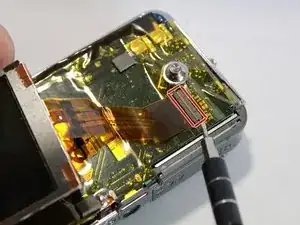

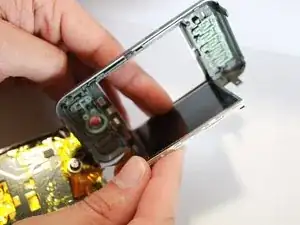

    • Remove the LCD display by unplugging the connector

    • Take apart the LCD display from the back case

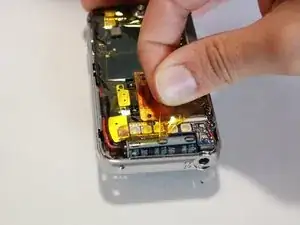

  9. 2kGNodQUCUSaglMJ
    2kGNodQUCUSaglMJ
    wQpqwyvSFvqDNR4u

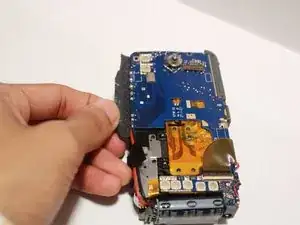

    • Peel off the yellow film.

    • Peel off the black tape holding the wires.

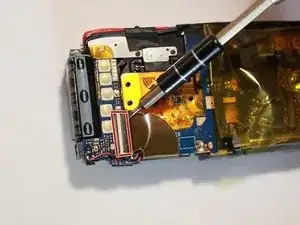

  10. PB1pOC4ikOvHqXf3

    • Unplug the connector by lifting the little lock holding it in place.

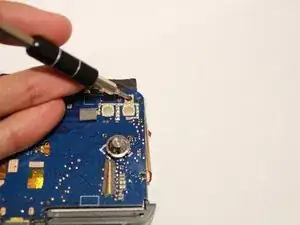

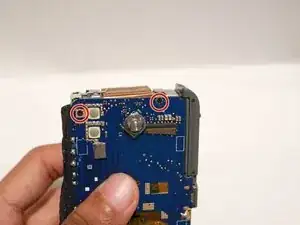

  11. rLYnLCaYKVTKFsUF
    rLYnLCaYKVTKFsUF
    HcVCkDQd1VCEaPmo

    • Use a J00 screwdriver to remove two screws located on the far right, near to the main button.

  12. XKwuYStnwvUAyHrd
    XKwuYStnwvUAyHrd
    qeS1L3cvIvUv15NE
    SCLMVWXLvoUDeUFJ

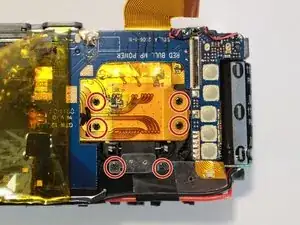

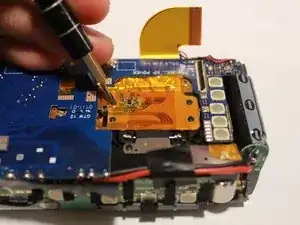

    • Use a J00 screwdriver to remove 6 screws located at the center of the back panel.

    • Gently pull out the lens using you finger tips or pincers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
