Krups 963 Power Cord Replacement

Written By: Wyatt Hall
  • Comments: 0
Krups 963 Power Cord Replacement

Difficulty

Easy

Steps

5

Time Required

5 - 10 minutes

Introduction

No prior knowledge needed! Be sure to unplug the device before beginning this guide to avoid electrical shock and damage to yourself and the device.

  1. TRwPn3lNRfqKraOu

    • Make sure the device is unplugged before continuing.

    • Use a Phillips size 2 screwdriver to remove the four 12mm screws found on the bottom of the machine.

  2. vTFNuiKQV5ITIXRw

    • Remove the single black Phillips size 0 10mm length screw on the back of the machine.

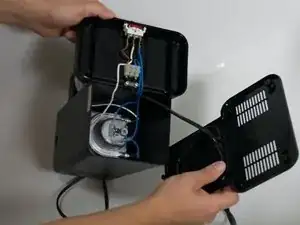

  3. U5XGlBd1IQmyLPTT

    • Remove the bottom cover from the machine and slide it down the power cord.

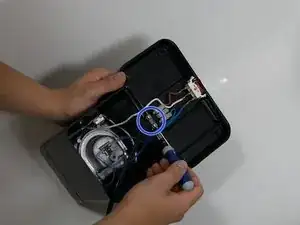

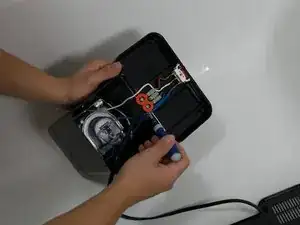

  4. PwR5hpUwY1fI2XwH
    PwR5hpUwY1fI2XwH
    HXQP4OMfuCIVVtBP

    • Use the PH2 (or similar) screw driver to remove the two 12mm screws holding the clear restraining brace.

    • Remove the restraining brace from the machine base.

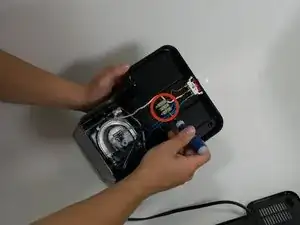

  5. WuCyaXlieKg1BEH2

    • Use a 2.0 flat head (or similar) screw driver to loosen the screw holding the power cord in.

Conclusion

To reassemble your device, follow these instructions in reverse order.
