Krups CafeExpress FMA110 Disassembly

Written By: Sam Sugerman
  • Comments: 0
Krups CafeExpress FMA110 Disassembly

Difficulty

Easy

Steps

18

Time Required

25 - 45 minutes

Introduction

If you need to disassemble your Krups CafeExpress FMA110 for repair or spare parts, follow this disassembly guide. Repairs could include a burnt-out heating element, faulty wire connection, ripped tubing, burnt-out thermal fuses, broken temperature switch, etc.

Be sure the device is unplugged before you begin disassembly to avoid burning or electrocuting yourself, which can cause serious injury.

Steps 4 and 6 require pulling silicon tubing off of the device. The tubing can rip easily, so be careful. The opening tools can help with these steps.

  1. XksLxki3JIAcEvkB
    XksLxki3JIAcEvkB
    rskI5hdDK5NitTTk

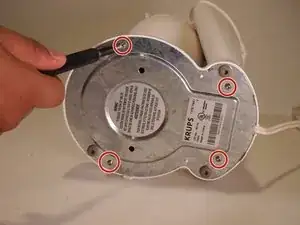

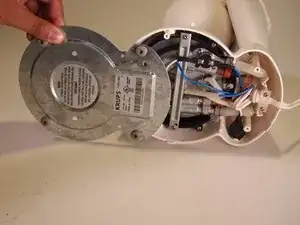

    • Using the Phillips #1 screwdriver, remove the four 13.8 mm screws on the bottom of the device.

    • Remove the metal plate.

  2. vKXHQRqhF2EFmtDZ

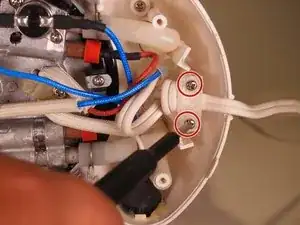

    • Using the Phillips #1 screwdriver, remove the two 16.7 mm screws to release the power cable.

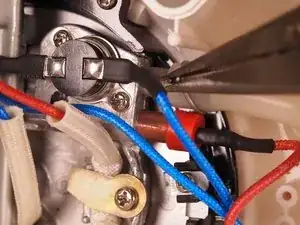

  3. w25YpBaBtnSjj6HU
    w25YpBaBtnSjj6HU
    GhgC33KpqlPWBONC

    • Pinch the clamps around the thinner part of the silicon tubing and slide them towards the corner of the tube.

  4. vZxgBHfgJFZAU26W

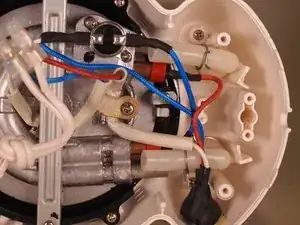

    • Carefully pull the silicon tubing off of the metal tube.

  5. WFlKSTlqkHCZYsfo
    WFlKSTlqkHCZYsfo
    w6eu14VPQO1BQ2V3

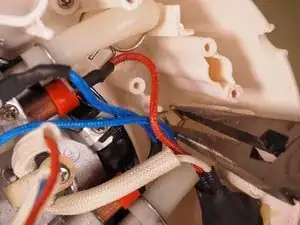

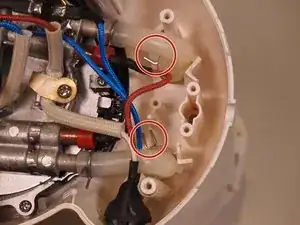

    • Pinch the clamps around the thicker part of the silicon tubing and slide them towards the corner of the tube.

  6. CRfWkHXBxgcIg4Hx

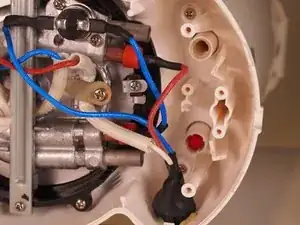

    • Carefully remove the silicon tubing from the upper reservoir.

  7. dGBlOVtWeKu31Ind

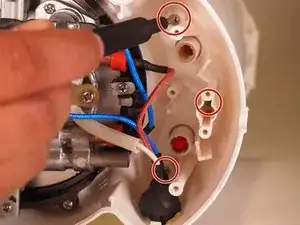

    • Using the Phillips #1 screwdriver, remove the three 13.8 mm screws towards the back of the base.

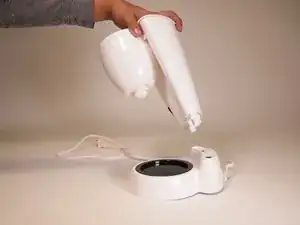

  8. 1cOLYOXcmARFWSFJ

    • Separate the base of the device from the upper reservoir.

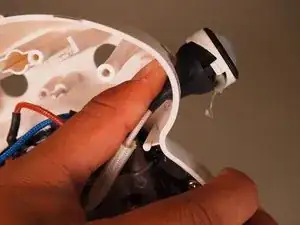

  9. HjArNiF1gUURWaHV

    • Push the switch out from the inside, releasing it from the plastic base.

  10. qDJDTQSJ5XbOZc26

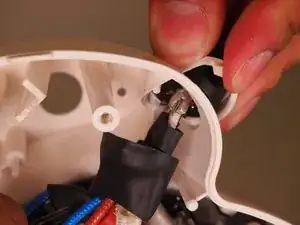

    • Loosen the white ring from the switch and squeeze it to slide it through the opening in the base.

  11. nf4LYBQYdhxLMaV1

    • Slide the rest of the switch back through the hole in the base.

  12. uSFKu3IwVdsTJ6ik
    uSFKu3IwVdsTJ6ik
    HLbLcgVJcguBPnOM

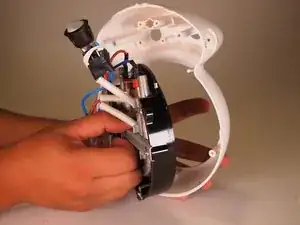

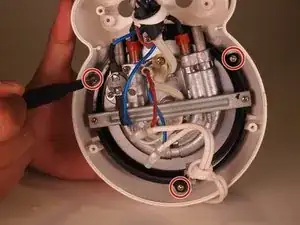

    • Using the Phillips #1 screwdriver, remove the three 15.8 mm screws to release the inner components from the plastic base.

  13. caZwqSQl6OMM4Mc2
    caZwqSQl6OMM4Mc2
    HOAEgCPNHYLoV1qS

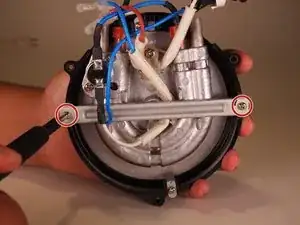

    • Using the Phillips #1 screwdriver, remove the two 11.5 mm screws on either side of the horizontal metal bracket.

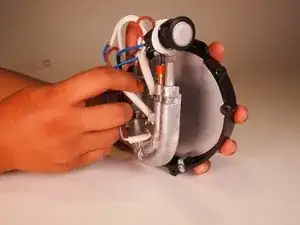

  14. dsGQv42nhQlZSS2W

    • Remove the horizontal bracket to separate the heating element and wires from the hot plate.

  15. aZRZysANpBEMMXAv

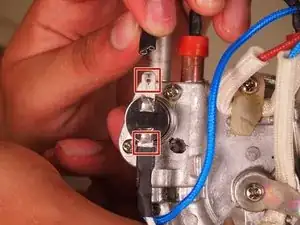

    • Disconnect the wire connectors from the thermal switch.

  16. adabPNFtYUwCWiH1

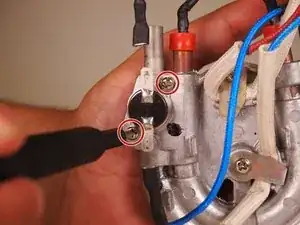

    • Using the Phillips #1 screwdriver, remove the two 7.6 mm screws and remove the thermal switch.

  17. F4EicZgRpx5isj6A
    F4EicZgRpx5isj6A
    aSdCrKdt3SmXKtGm

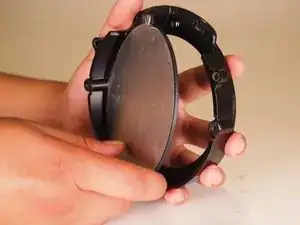

    • Using the Phillips #1 screwdriver, remove the two 9.9 mm screws from the hot plate.

    • Separate the hot plate from its frame.

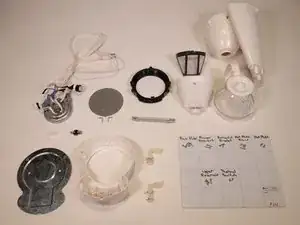

  18. AaSpXuLfwkjOxx3K
    AaSpXuLfwkjOxx3K
    qVpVoqVdKqheH4Lw

    • Once the heating element reaches a certain temperature, the thermal switch shuts it off to prevent it from overheating.

Conclusion

To reassemble your device, follow these instructions in reverse order.
