Kurio Touch 4S Speaker Replacement

Written By: Moin Khan
  • Comments: 0
Kurio Touch 4S Speaker Replacement

Difficulty

Moderate

Steps

9

Time Required

5 - 10 minutes

Introduction

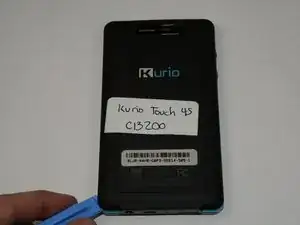

  1. vYDNSgEsWC5Cdt2G

    • Make sure to open the back cover easily using the plastic opening tool.

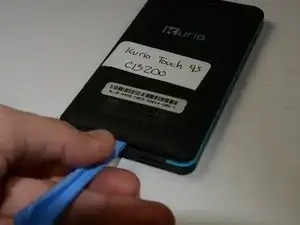

  2. EfKE4FciRN5xsV1m
    EfKE4FciRN5xsV1m

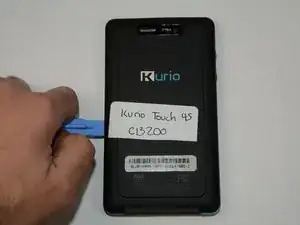

    LdCony4gQTeCIyu6

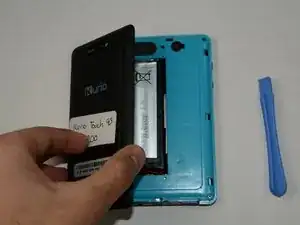

    fgUW46XvOkHa5BDT

    • Remove back cover by prying away from the device.

    • The easiest place to remove the cover is from the bottom and top; try to open it from the right and left sides.

    • Open it gently. Do not open it with too much pressure, so that the plastic back cover do not break.

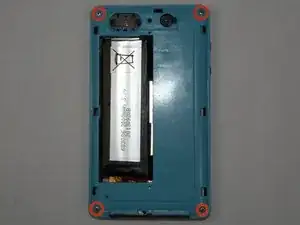

  3. jOLdIiSxpOr141G5
    jOLdIiSxpOr141G5

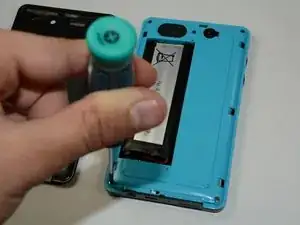

    CUXICYDNII6bZhWu

    • To remove the battery, make sure the four 5mm Philips screws on each side of your device is open using the Phillips #1 Screwdriver

    • After you remove your four 5mm Philips screws, use your plastic opening tool to help you open the plastic cover of your device.

  4. vPMs3EFGwQdfJfFI

    • After you remove your four 5mm Philips screws, use your plastic opening tool to help you open the plastic cover of your device.

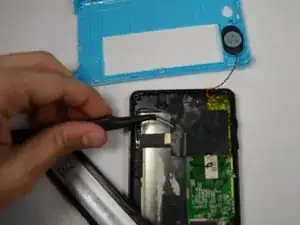

  5. wNZLyCRFYBQnnLyd

    • Gently remove the plastic cover that is covering the camera.

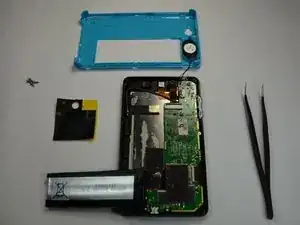

  6. JI131LGZdT3jAcWp

    • Separate the two halves of your Kurio Touch 4S and lay them besides each other.

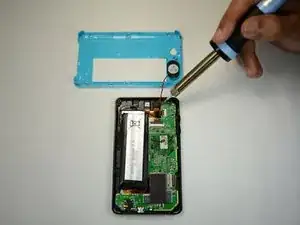

  7. ivYgSHMXjnoV6Eug

    • Use the soldering tool to detach the speaker wires.

    • For more information on how to solder the wires Click here

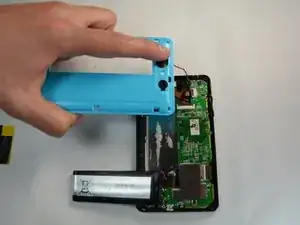

  8. jOKDA3RVtUi5Ce2g

    • Press the speaker in the manner shown so that it comes out of its slot.

    • Be sure not to apply too much force or you can break the back cover.

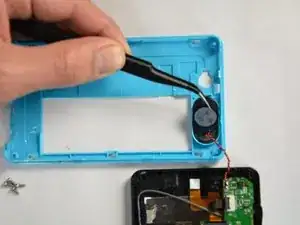

  9. ujcWSkEUxnXrEyTY

    • Use the Tweezers to remove the speaker from its place.

    • Remove the speaker gently.

Conclusion

To reassemble your device, follow these instructions in reverse order.
