Introduction

Follow this guide to replace the motherboard in your Kurio Xtreme. Before you begin, make sure that you have a soldering iron and know how to use it.

  1. uoQkCFRnIFyJNyPD

    • Remove the rubber case by beginning to peel from one of the top corners and continue peeling until the cover is completely removed.

  2. niYVCXO2jewL6Nf6
    niYVCXO2jewL6Nf6
    c1Btbq2bLDToS2Na

    • Unscrew the four 4 mm black screws using a Phillips #000 screw driver.

    • There are two screws on each side of the device (four total).

  3. b5CSUCmbJMBJMOOh
    b5CSUCmbJMBJMOOh
    jxxZsbnUyQthS1pZ
    jYyRWipttPbUYf1i

    • Insert the plastic opening tool in between the edges of the blue front casing and black back casing.

    • Slide the plastic opening tool around the perimeter of the device. This may require that you repeatedly run the opening tool up and down the edges of the device.

    • Be sure not to break any of the plastic clamps along the edges of the device when removing the back cover.

    • Carefully lift the back panel off of the rest of the device.

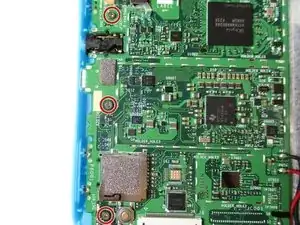

  4. OKr4I6GgXErLNopH

    • Unscrew the three 4 mm screws with a Phillips #000 screwdriver.

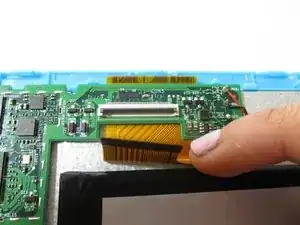

  5. TVlhuq4GWqQ6gTS3
    TVlhuq4GWqQ6gTS3
    kmpeREJfSLxitfEc

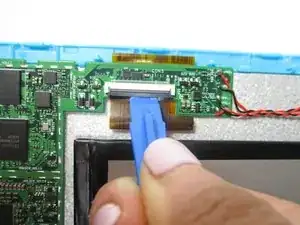

    • Remove the orange data display ribbon wire above the battery by prying open the ZIF connector with the plastic opening tool.

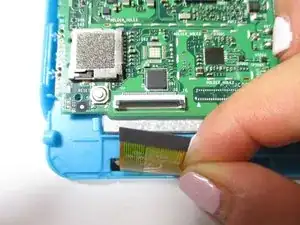

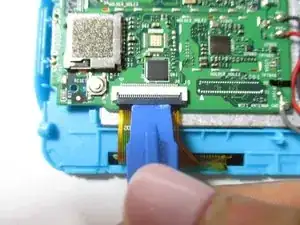

  6. o5MIDrXyq4ErqcHV
    o5MIDrXyq4ErqcHV
    WW2TEp6mU5MQpB1o

    • Remove the orange data display ribbon wire to the left of the battery by prying open the ZIF connector with the plastic opening tool.

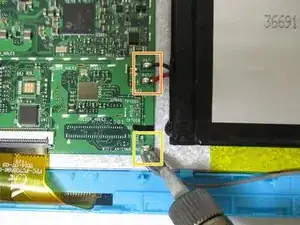

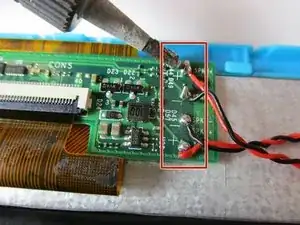

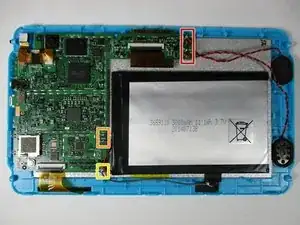

  7. t1IMDo4HiBbVSvEj
    t1IMDo4HiBbVSvEj
    gBAGUOZgjZ4BRC6V
    xwMTvk124KTiT2id

    • Remove the 7 wires connected to the motherboard by soldering the ends that connect them to the motherboard.

    • 2 pairs of red and black speaker wires (4 wires total)

    • 1 pair of red and black battery wires (2 wires total)

    • 1 gray ground wire

    • The soldering iron gets very hot and may injure you if exposed to your skin.

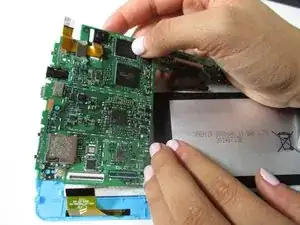

  8. yqK2GoMPLb4yF4SD

    • Remove the motherboard by lifting it out of the casing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
