Introduction
If your Kurio Xtreme's speakers are not working properly, follow these steps to replace the faulty speakers with new speakers. Before proceeding, make sure that you have a soldering iron and know how to use it.
-
-
Remove the rubber case by beginning to peel from one of the top corners and continue peeling until the cover is completely removed.
-
-
-
Insert the plastic opening tool in between the edges of the blue front casing and black back casing.
-
Slide the plastic opening tool around the perimeter of the device. This may require that you repeatedly run the opening tool up and down the edges of the device.
-

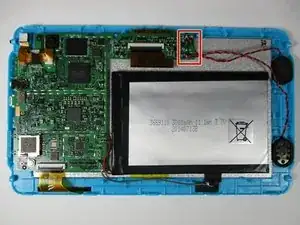

Carefully lift the back panel off of the rest of the device.
-
-
-

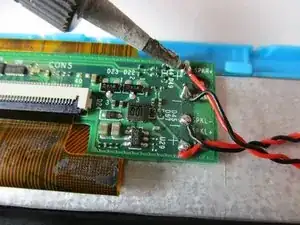

Disconnect the 2 sets of black and red wires (4 wires total) from the motherboard by soldering the ends connected to the motherboard.
-
-
-
Carefully remove the speakers out of the plastic molds by lifting up the black and red wires.
-
To reassemble your device, follow these instructions in reverse order.
