Kushlan Cement Mixer 600DDS 2014 Capacitor Replacement

Written By: Sam Omiotek

Difficulty

Moderate

Steps

Time Required

10 - 30 minutes

Introduction

Follow this guide to replace the capacitor (also commonly called a condenser) on a 2014 Kushlan cement mixer model 600DDS.

To prevent electric shock, leave the device unplugged for 20 minutes to allow the capacitor to discharge before you begin.

Before you begin, ensure the power cord is unplugged and the power switch is in the OFF position.
Use a 13 mm socket to remove the two bolts securing the motor cover to the frame.

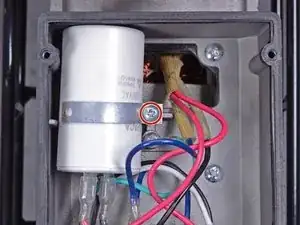

Use a Phillips screwdriver to remove the four screws securing the electrical panel.

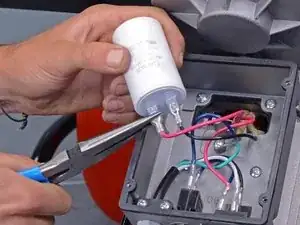

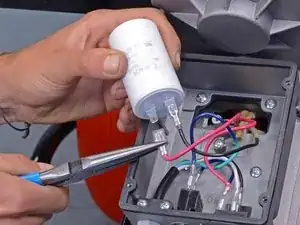

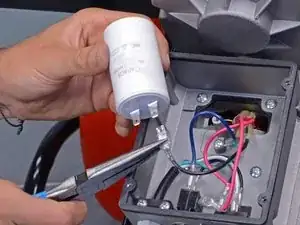

Use a pair of needle nose pliers to disconnect the red and black wires from the capacitor.

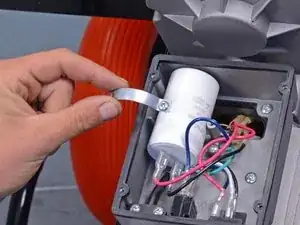

Remove the capacitor.

Conclusion

To reassemble your device, follow these instructions in reverse order.
