Kushlan Cement Mixer 600DDS 2014 Power Cord Replacement

Written By: Sam Omiotek

Difficulty

Moderate

Steps

Time Required

15 - 45 minutes

Introduction

Follow this guide to remove or replace the power cord on a 2014 Kushlan Cement Mixer model 600DDS.

To prevent electric shock, leave the device unplugged for 20 minutes to allow the capacitor to discharge before you begin.

Before you begin, ensure the power cord is unplugged and the power switch is in the OFF position.
Use a 13 mm socket to remove the two bolts securing the motor cover to the frame.

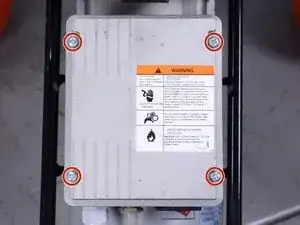

Use a Phillips screwdriver to remove the four screws securing the electrical panel.

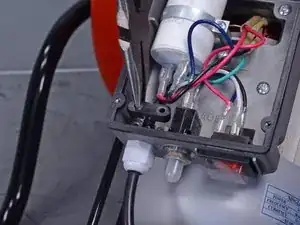

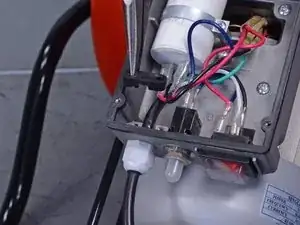

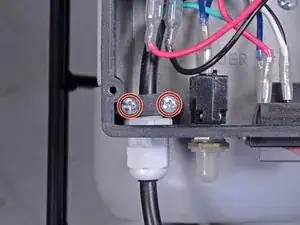

Use a Phillips screwdriver to remove the two screws securing the fastener behind the strain relief fitting.

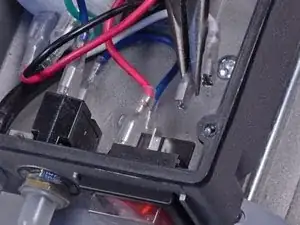

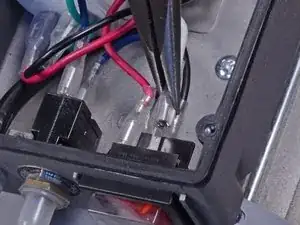

Use a pair of needle-nose pliers to disconnect the two black and white wires from the on/off switch.
You don't need to remove the blue or red wires from the switch.

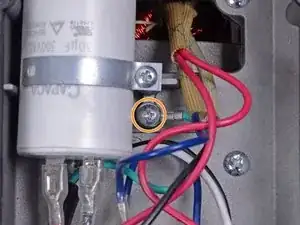

Use a Phillips screwdriver to remove the screw securing the green ground wire to the bottom of the electrical box.

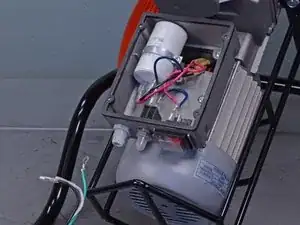

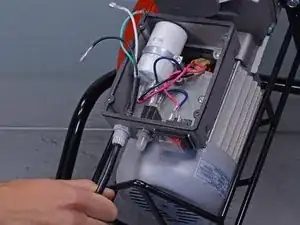

Feed the power cord and its black, white, and green wires out through the strain relief fitting.

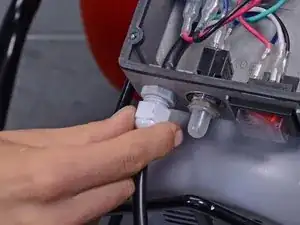

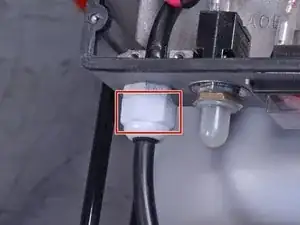

Transfer the strain relief fitting cap onto the new power cord before feeding it through the fitting.

Conclusion

To reassemble your device, follow these instructions in reverse order.
