LG Ally VS740 Screen Replacement

Written By: Billy Carias
  • Comments: 1
LG Ally VS740 Screen Replacement

Difficulty

Moderate

Steps

7

Time Required

40 minutes

Introduction

How to replace the screen in an LG Ally VS740.

  1. 2fkZQHBULsGujX6A

    • Remove Battery

    • Remove all 6 screws that are on the outer edge of phone

    How can I order a replacement screen for myAndroid LG-VS740 phone.?

    Virginia Rucker -

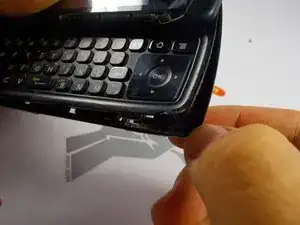

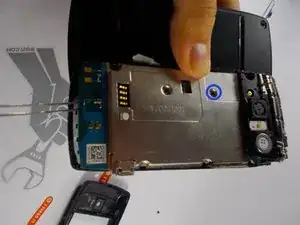

  2. K5SqoAHs6MNIMJqd
    K5SqoAHs6MNIMJqd
    GbaLpoFcFtGG3oKr

    • Remove backcasing connected to the rest of the phone.

    • Remove the phillip screw from the small white box on the top left corner that’s on the battery platform of the phone.

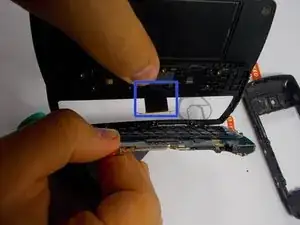

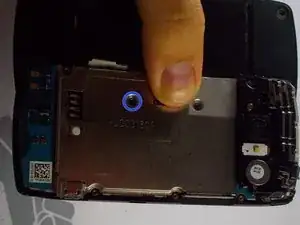

  3. 2RcjfjYhH1Yq25Vy
    2RcjfjYhH1Yq25Vy
    Uxykslm2CrIknjqX

    • Remove phone sticker and remove screw under the sticker. Now you can remove the motherboard. Be careful with the tether still connected to it.

    • Remove tether.

  4. TJOMpcumvEyY1kkM

    • Remove the keyboard, and the rubber caps behind the phone.

    • To the right hand side of where the keyboard was, remove the four screws shown.

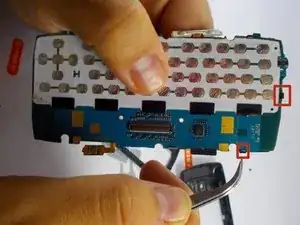

  5. ywmLZFOla1mkeGOv

    • Release clips with prying tool and take off the next layer of the phone.

    • Release the pop-connectors, and the flex cable at the top by the speaker.

    • . Now you can easily remove the yellow cabling on the phone.

    • Release jaw connector. Now remove LCD screen. You can now replace the screen.

Conclusion

To reassemble your device, follow these instructions in reverse order.
