LG CF360 Rear Speaker Replacement

Written By: Annie White
  • Comments: 1
LG CF360 Rear Speaker Replacement

Difficulty

Moderate

Steps

8

Time Required

5 - 10 minutes

Introduction

This guide will teach you how to remove the back speaker, located directly underneath the back cover. Only minimal disassembly is required.

  1. FWgpsVIaZjwn16Py
    FWgpsVIaZjwn16Py
    oBNcMpF2SivMmCe4

    • On the back of the phone, place your thumb on the three raised bumps and slide the back cover upward.

  2. XwAdrMe4dEYvWjuh

    • Lift and remove the battery.

  3. MbsViEGLPGIBPRfC
    MbsViEGLPGIBPRfC
    MclpdvkpYPYIPUrT

    • Remove the two screw covers at the top of phone with tweezers.

  4. YVRtxgTHPEtRJBcC

    • Remove the six Phillips #000 (3mm) screws.

  5. eLsr1ENkCwJZweNy
    eLsr1ENkCwJZweNy
    VVooWfVAMfSJWNiO
    bJF3hhGmJCeNVBfE

    • Use the plastic opening tool to pry the back cover off. Insert the tool between the back cover and red mid section and go around the entire phone.

    • The plastic side buttons fall out when you take the back cover off.

    • The back cover is connected to the speaker by red and black wires.

  6. rEbK5faojFdIQhAS

    • Use the tweezers to remove the red and black wires connecting the speaker to the green motherboard by pinching the sides of the plastic base near the motherboard.

    • Set the back cover with the speaker aside.

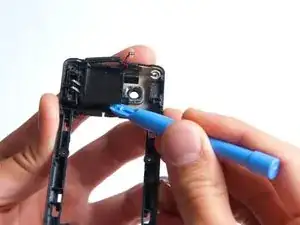

  7. GvyIDI4FgZCRnhkW

    • Use the plastic opening tool to pry the speaker cover off of the phone.

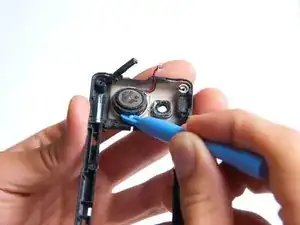

  8. UrSeKTMhJOewuicw

    • Use the plastic opening tool to pry the speaker out of the back cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
