LG Muziq LX570 Display Panel Replacement

Written By: Braden Burk
  • Comments: 0
LG Muziq LX570 Display Panel Replacement

Difficulty

Moderate

Steps

8

Time Required

20 - 30 minutes

Introduction

This guide will assist you in removing and replacing the display panel on your LG Muziq.

  1. Ij6f5gaE3prryC6g
    Ij6f5gaE3prryC6g
    gOxcplCLFqUBwCKW

    • Use a spudger to remove the two screw covers below display.

    • Use a screw driver to remove the four Phillips #00 (3.3mm) screws at corners of the display.

  2. BQsRDLKiSttBo5ZP
    BQsRDLKiSttBo5ZP
    ufAERPlYNv2k5QCi
    GRriPlaiJNjZIEWD

    • Caution: Wires and ribbon connect the front case to the main body. Exhibit care when separating front case from the main body as to not break the connections.

    • Note: Side buttons may fall out when removing the front case. Do not misplace them.

    • Note: Each side button will only fit in the side that it came from.

    • Insert a spudger between the black and grey casings and gently spread them apart.

    • Work around the device gradually, opening the gap further.

  3. YVDENlhBjjJKwLUX
    YVDENlhBjjJKwLUX
    1ABb5arP6FFkGVEJ
    UJuIWhcokyIyiNZm

    • Caution: The wires and ribbon connector can break easily. Exhibit care when removing them.

    • Use the spudger and lift upward to disconnect the ribbon from the main part of the phone.

    • Carefully remove any parts stuck to the front case such as speakers.

  4. xE5RNZP4bBndgv6i
    xE5RNZP4bBndgv6i
    TBxV4ZkskXPgBRyw
    NcpWdKCaDdenTgBv

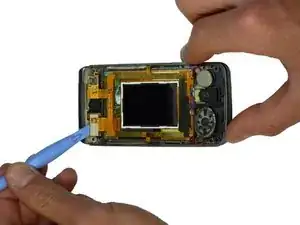

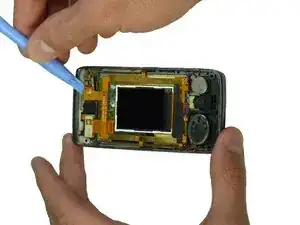

    • Use the spudger to unclip the two upper wiring connections.

  5. URkaZhdmJGr6o2bB
    URkaZhdmJGr6o2bB
    o2rVR2kMNFLD1BLp

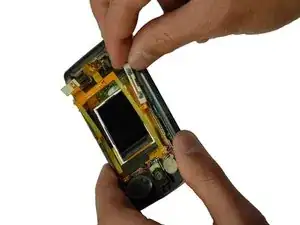

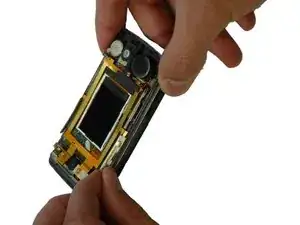

    • Caution: The side buttons are attached to the ribbon around the display screen. Do not separate the side buttons from the ribbon when removing.

    • Gently lift the side buttons from the phone casing.

  6. weNSGdYYeGECAAEs
    weNSGdYYeGECAAEs
    ObKy6pvyBDgCeIoA
    IRrnCMj1urHmVTiq

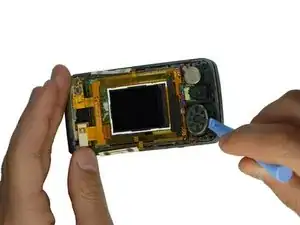

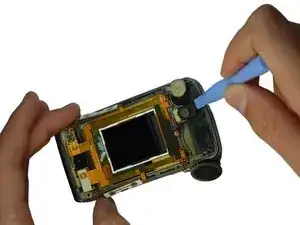

    • Caution: The wiring on the ribbon connector is delicate. Do not excessively pull on the wires.

    • Use the spudger to remove the three components connected to the ribbon.

  7. UNrlU1j2KYoVYTGF
    UNrlU1j2KYoVYTGF
    HutSImTIJShTbTlf
    MpPeYtCyCsqfWjyJ

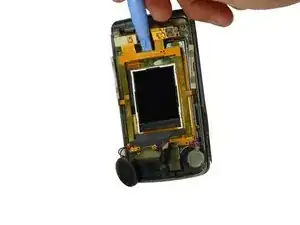

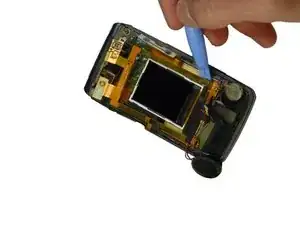

    • Caution: The ribbon contains important wiring and is glued to the phone. Be careful when removing the ribbon.

    • Use the spudger to gently remove the ribbon from the phone.

  8. LNnETCIRdiPiFys2
    LNnETCIRdiPiFys2
    LOAN4k2CXZTBHSDb
    Ev3ddaPjgkHlZhTF

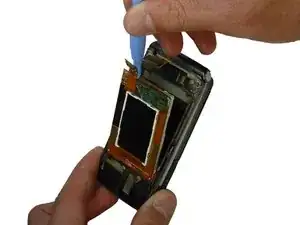

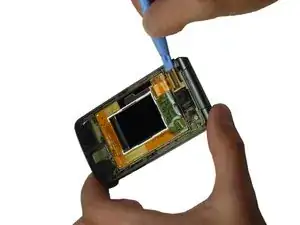

    • Use the spudger to lift the upper tab in the top left corner of the display.

    • Continue lifting until the display panels lift out of their setting and can be removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
