LG Optimus F3 Speaker Replacement

Written By: Hubert
  • Comments: 0
LG Optimus F3 Speaker Replacement

Difficulty

Moderate

Steps

5

Time Required

15 minutes

Introduction

  1. Nlql3ikJUOmrFpBF
    Nlql3ikJUOmrFpBF
    mSvZoHE1EFDIsXfp

    • Remove battery cover.

    • Remove battery

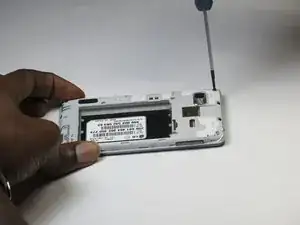

  2. xUIR2A1VS6TV5Twp

    • Remove the ten (10) holding screws located on the phone using phillips screwdriver.

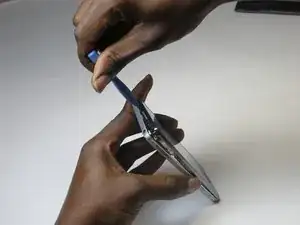

  3. dFcjOJNEARoUVuyt
    dFcjOJNEARoUVuyt

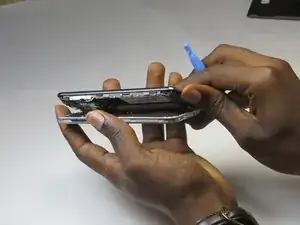

    AIITwvhdRDEW1IOP
    OIxMJCcA3agCe2mF

    • Use spudger tool to separate the main board from back face.

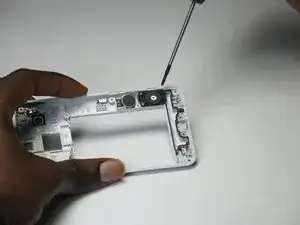

  4. GBObDFSuQwfuipkl
    GBObDFSuQwfuipkl

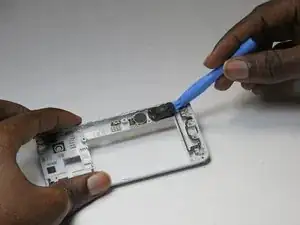

    SgQJvREnxplITBbu

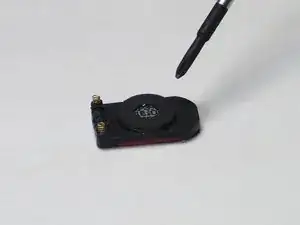

    XBBgPH4UtGkoa2bo

    • Locate faulty speaker.

    • Use spudger to separate speaker from terminal (it will take a reasonable amount of force to do this, due to the adhesive holding the speaker in place).

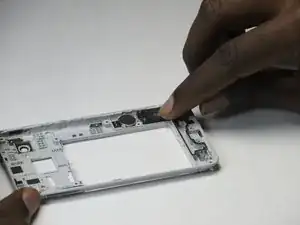

  5. B6ZRgXCNO1NWmsVD

    • Align new speaker to the area.

    • Ensure speaker is securely in place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
