Introduction
Before continuing, make sure the device is powered down. Also make sure that the battery and back casing are removed.
-
-
To remove the back, insert thumbnail into MicroUSB port, and pull up to loosen back.
-
Use nail to loosen case on all four sides. Once loose, remove back case.
-
-
-
Once the back cover and battery are removed, use the Phillips #J000 screwdriver to remove all 11 screws located around the plastic midframe.
-
-
-
Using the plastic opening tool, carefully pry and separate the plastic midframe from the rest of the phone.
-
-
-

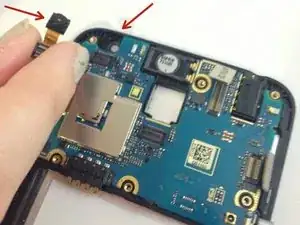

Locate the front facing camera in the top left hand corner of the motherboard. Using the plastic opening tool, separate the ribbon cable from the phone.
-
-
-
After removing this ribbon cable, you will be able to easily remove the front facing camera with your fingers.
-
To reassemble your device, follow these instructions in reverse order.
