LG Tone Active HBS-850 Speaker Replacement

Written By: Faizan Naveed
  • Comments: 4
LG Tone Active HBS-850 Speaker Replacement

Difficulty

Moderate

Steps

7

Time Required

30 minutes

Introduction

  1. MMEJv3HniYGLqlIN
    MMEJv3HniYGLqlIN
    c3NrX4QyFRU1Hyg1

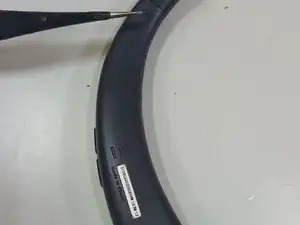

    • Locate the hidden screw as seen in the picture and remove the rubber covering the screw.

  2. MEN1sOwLtNSIGKux

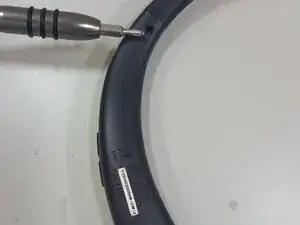

    • Remove hidden screw using a Philips #00 screwdriver.

  3. ZexlqLPLAIf12vlu
    ZexlqLPLAIf12vlu
    vUJH1Cnxl3mXvGL6

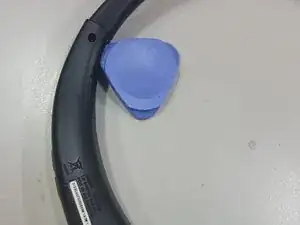

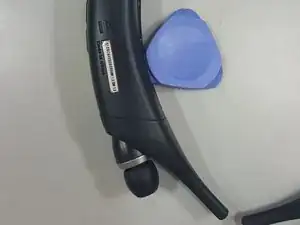

    • Use a guitar pick or any pry opening tool to gently lift the housing until the speaker end. There is a hidden screw that needs to be removed before the housing can be completely removed.

  4. NQx461DErdnHFspB
    NQx461DErdnHFspB
    1rUBLSZbFuBYATsN

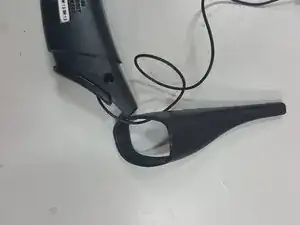

    • Gently remove the pointy rubber covering using tweezers where the speaker rests as shown in the picture.

  5. FdB5vkQD6HDkRhJS
    FdB5vkQD6HDkRhJS
    E1e1dFnZqsKP6PL4

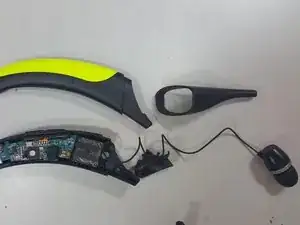

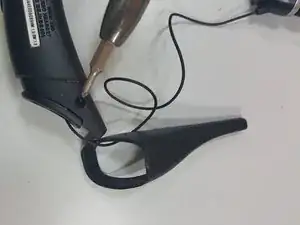

    • Use a Philips #00 screwdriver to remove the hidden screw.

  6. TAcUBPHUPtO3mRB4

    • Remove the screw holding the speaker in place using a Philips #00 screwdriver.

  7. FTbqHUdlpDJoQRRc
    FTbqHUdlpDJoQRRc
    mVPSylLVk4MIUfkM

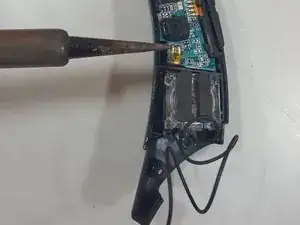

    • Desolder speaker connection using a soldering iron and replace with new speaker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
