LG VX3200 Keypad Replacement

Press button labeled "Push". In the photo depicted the button is being depressed by the left finger.

Pull back panel toward bottom of phone.

From the lip on the top of the battery, lift it out of the phone.

Remove the 4 small screws from the back panel, under the battery, using 00 Phillips-head.

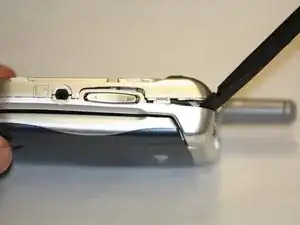

Starting at the top of the phone near the antenna, use a screwdriver or other small tool, maybe even fingernails, to pry the rear panel off.

By systematically prying up the edges of the back panel, moving about a quarter of an inch, and prying again, the panel will begin to lift off.

Don't be afraid to damage anything, the panel requires a bit of force to detach.

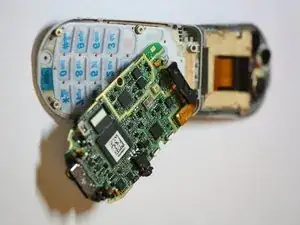

The logic board is only held on with 4 tabs and a data cable in the top right. Simply pry from one side using a screwdriver, popping out the board, before lifting the display data cable.

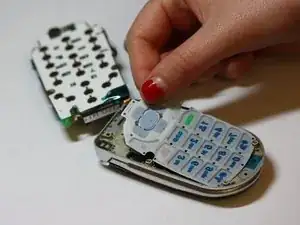

Lift the keypad up from beneath the logic board.
