LG VX5300 Keypad Replacement

Written By: Ashley
  • Comments: 0
LG VX5300 Keypad Replacement

Difficulty

Easy

Steps

8

Time Required

10 - 15 minutes

Introduction

This guide illustrates how to replace the LG VX5300 keypad.

  1. oOEa2O5gihUxRRBR
    oOEa2O5gihUxRRBR
    duQxgcXmRupNgTXj
    ZwbSs6ZkMbHN1nYy

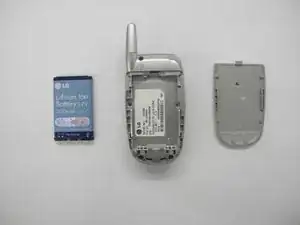

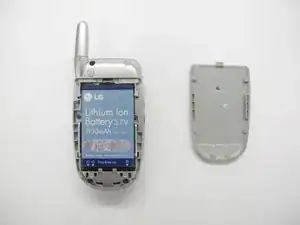

    • Carefully slide battery cover off in a downward direction.

    • Using the plastic opening tool, remove the battery. Light force may be necessary.

  2. EfFddgDYs4HeZ4CI

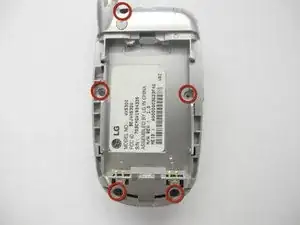

    • Using a Phillips #0 screwdriver, remove the five screws from the back cover and carefully set them aside.

  3. aqDijw3lUIJ2QIEx

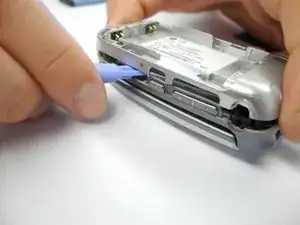

    • Using the plastic opening tool, carefully lift the back cover off.

  4. cEGTFONvPnCAvwoF
    cEGTFONvPnCAvwoF
    hXTFEggLCYvRQLAX

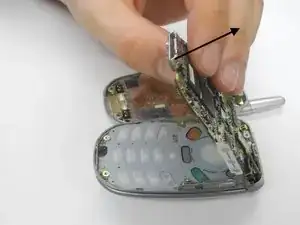

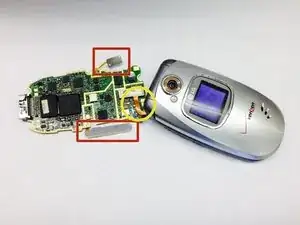

    • Before touching anything inside the phone: it is crucial that you are very cautious when working around the wiring and sensor bars.

    • Look to the following photo for the location of the two sensor bars.

    • Without disconnecting the orange wire, carefully flip the computer chip over and lay flat on the table, exposing the keypad.

  5. qfJoBYiLCaRTKKMX
    qfJoBYiLCaRTKKMX
    KCKtEBuGcCQi3iLc

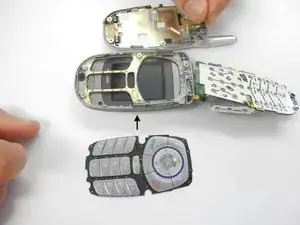

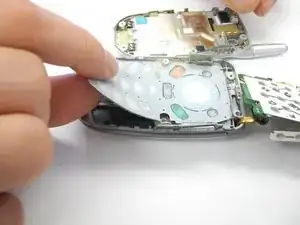

    • Carefully remove the keypad and replace with the new keypad.

    • If sensor bars behind the volume and camera buttons fall out, gently put them back in place behind the buttons.

  6. HCvgSatCqTn6ZOrh

    • Carefully set the computer chip back in place.

  7. g52hhQGkigVOBAgf
    g52hhQGkigVOBAgf
    spgDRL2NYIRXkcKC

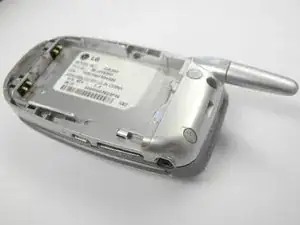

    • Place the back cover back on and secure it with the screws.

  8. QN1ojOfSlY1FgNNi
    QN1ojOfSlY1FgNNi
    Lrbbfv3SlSHVw6Ra

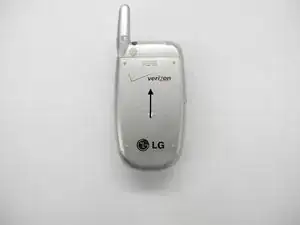

    • Insert the battery.

    • Slide the back cover on the phone.
