LG VX6000 Logic Board Replacement

Written By: Adam Altman
  • Comments: 1
LG VX6000 Logic Board Replacement

Difficulty

Easy

Steps

8

Time Required

15 minutes

Introduction

This guide is designed to remove or replace the logic board of the LG VX6000.

  1. Bwf61AlAIBKgTACN

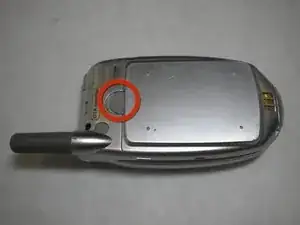

    • Locate the dark gray tab on the back of the phone.

    • Push the tab towards the top of the phone to release the battery.

    Remove battery

    Ryan Brekke -

  2. jc6sZTZMefRjmPiu

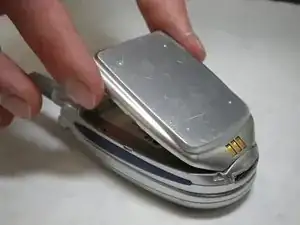

    • Lift and rotate the battery away from the bottom edge.

    • Remove the battery.

  3. E2X45CkIs2NrIB6x

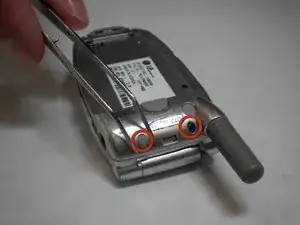

    • Carefully use tweezers to remove the two rubber cushions located at the top of the phone.

    • Only remove the two cushions that are circled!

  4. lJP2wKnYlFpXyGYo

    • Use a Phillips #00 screwdriver to remove the six screws highlighted on the back of the phone.

    • Place the screws on an uncluttered surface or in a small container.

  5. IdqOLaoayUCisgJQ

    • Carefully remove the back of the phone with your fingernails or tweezers.

    • There are red and blue wires connected to the motherboard. Forcing the components apart could damage the wires.

    • The red and blue wires must be plugged in to reassemble.

  6. aoA6d2MHntuFWeYK

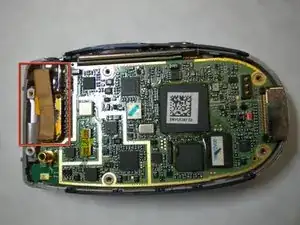

    • Carefully peel away the adhesive tab.

    • The tab should not be completely separated from the phone.

  7. 1VaBhYoThhEbEFdV
    1VaBhYoThhEbEFdV
    YnFvUyERbU4LABV5

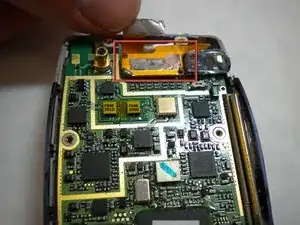

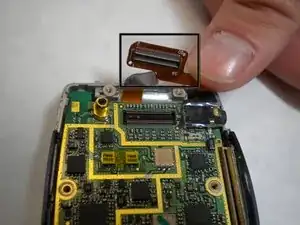

    • Locate the yellow connection towards the top of the phone. This is directly connected to the screen.

    • Carefully pry the connector away from the motherboard to remove it from the phone.

    • Do not pull forcefully

  8. wensKXfUNIRhWDaZ

    • Gently lift the corner of the motherboard away from the casing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
