Introduction
Tools
-

                  -
            Pull down on the button at the bottom of the phone. The battery will pop up and can then be safely removed.

-

-

                  -
            To install the new battery, position the battery so that the three small metal contacts of the battery are facing the three metal contacts of the phone
-
            Insert the top of the battery, with the two plastic tabs, into their respective holes in the top
-
            Then press down on the bottom of the battery and it should snap into place

-

-

                  -

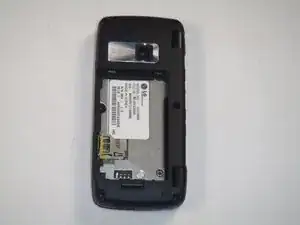

            First remove the battery by pulling the tab away from the device
-

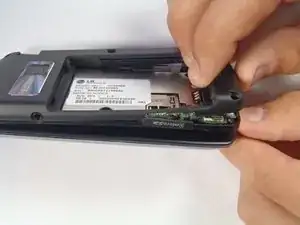

            Next remove the 5 rubber modules by gently prying underneath them. This will expose the screws underneath

-

-

                  -

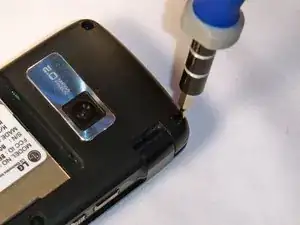

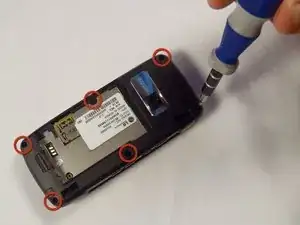

            Next remove the 6 #00 Phillips screws holding the back in place
-
            screws: 1.43mm head, 3.61mm length

-

-

                  -

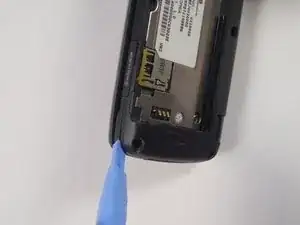

            Now, slide a plastic opening tool in between the two plastic pieces that form the outside of the back case
-
            Gently work the plastic opening tool around the edge of the case to separate the two pieces
-

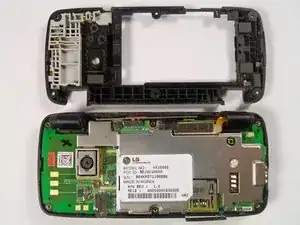

            Once the case has been separated you should be able to see the circuitry inside the phone

-

-

                  -

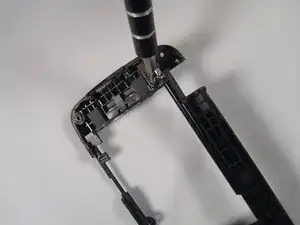

            Remove the #00 Philips screw holding the antenna in place
-
            Screw: 4.52mm length, 2.68mm head
-

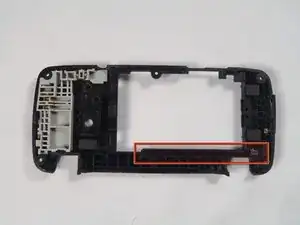

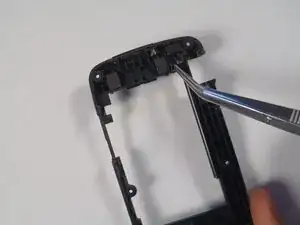

            Once the screw is removed, lift the small case around the antenna off

-

To reassemble your device, follow these instructions in reverse order.
