Le Pan II Screen Replacement

Written By: Kelly Moniz
  • Comments: 0
Le Pan II Screen Replacement

Difficulty

Moderate

Steps

6

Time Required

10 minutes

Introduction

In this guide, you will be shown step-by-step how to replace your broken Le Pan II screen. This screen is attached to a plastic casing with adhesives and this should be kept in mind during the following steps.

  1. Wh6KhNlgMBSEyRIU
    Wh6KhNlgMBSEyRIU
    uFxf3kMXMKjtjrQh

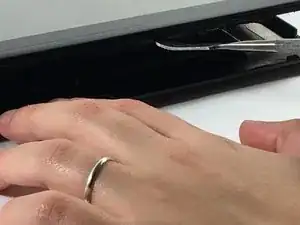

    • Insert metal spudger between front and back panel to pry apart.

    • Continue to pry while moving the metal spudger along the crevice to completely separate two panels.

    • Avoid using metal when opening devices, as it can damage or crack the screen.

  2. G6gHx1Z2CWWZ24ZA
    G6gHx1Z2CWWZ24ZA
    daWTgxLZQLqU3rAB

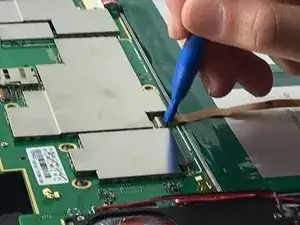

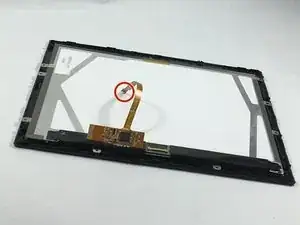

    • Use the plastic opening tool to disconnect the flat ribbon cable from the motherboard connector.

    • Disconnect the flat ribbon by gently pulling it out from its connecting port.

  3. YdZoCuCxZo2KCAVF
    YdZoCuCxZo2KCAVF
    EDgASYTUtLhs2FmC

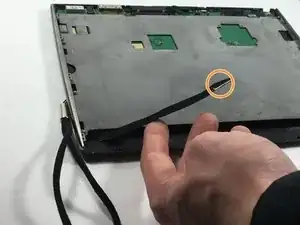

    • Use the plastic opening tool to disconnect the display cable from its motherboard connector.

    • Disconnect the display cable by gently pulling it out from its connecting port.

  4. UlWIDLFQCvpcWiXQ

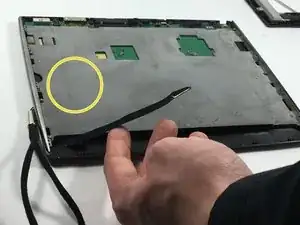

    • Remove grey metal backing from screen.

  5. WRgcYWsMWD5ckiOF

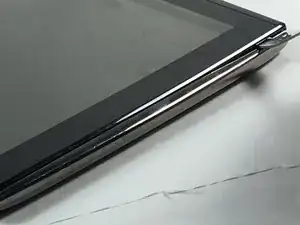

    • Flip the tablet so the screen is facing upward, and use the metal spudger to pry apart the screen from the side pieces.

  6. MkTAFyuQoNaTNpWO

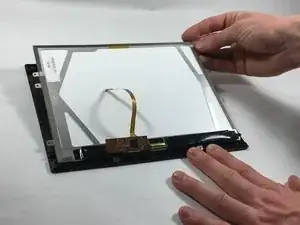

    • Lift and carefully remove the LCD display from the front cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
