LeapFrog LeapTV Controller Button Replacement

Written By: Triston Fischer
  • Comments: 0
LeapFrog LeapTV Controller Button Replacement

Difficulty

Easy

Steps

11

Time Required

10 minutes

Introduction

This guide will show you how to replace the "A" and "B" buttons on the controller.

  1. qPwNUMVXVcUMbAZm

    • Use the Metal Spudger to push the release clip on the battery cover.

  2. pmSEECHyiCwvqwvv

    • Lift the cover off.

  3. EErgITDAISNPjJLx

    • The battery holder is now visible with the removal of the cover.

  4. eDLoCjAOUeB3y6Ug

    • Use the screwdriver to remove the eight 8.7mm PH1 Phillips head screws.

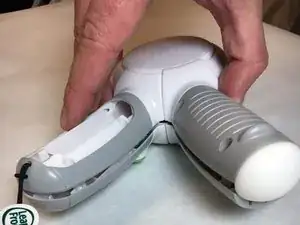

  5. xSvATQEoOBJHReIG

    • Slightly lift up on the back cover until the handle covers are free to rotate.

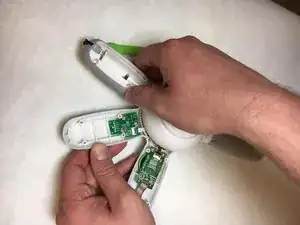

  6. YPhKnB6ebDCsUFbB

    • Slide the the side of the handle facing you to the left to reveal the "A" and "B" button circuit board.

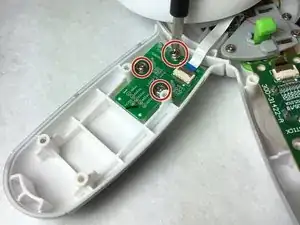

  7. acZUUVCRuYEpdfGa

    • Use the screwdriver to remove the three 8.5mm PH1 Phillips head screws.

  8. pLKM6rihF5UoCQkR

    • Lift up on the circuit board and move it to the side.

    • Be careful to not cause excess stress to the connecting wires when handling the circuit board. Excess stress can cause solder points to break.

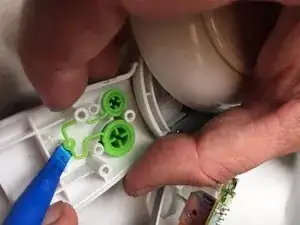

  9. MTkn2gliKJenqvoR

    • Use the plastic opening tool to release the buttons from the controller casing.

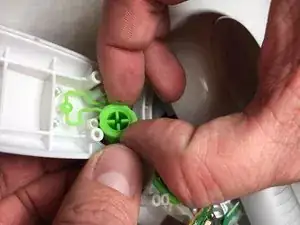

  10. APrSV1G1CFkFq6IT

    • Remove the "A" and "B" buttons by pulling up on one of the buttons.

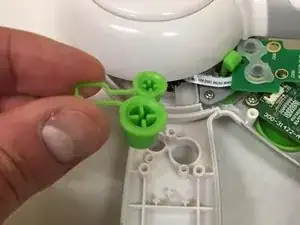

  11. ZWLranXMSyjiLChC

    • Buttons are now removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
