LeapFrog LeapTV Controller Joy Stick Replacement

Written By: Joshua Jones
  • Comments: 2
LeapFrog LeapTV Controller Joy Stick Replacement

Difficulty

Easy

Steps

10

Time Required

10 minutes

Introduction

This guide will show you how to replace the joy stick on the controller.

  1. qPwNUMVXVcUMbAZm

    • Use the Metal Spudger to push the release clip on the battery cover.

  2. pmSEECHyiCwvqwvv

    • Lift the cover off.

  3. EErgITDAISNPjJLx

    • The battery holder is now visible with the removal of the cover.

  4. CHUAKTdD2UbCQDFI

    • Use the screwdriver to remove the eight 8.7 mm PH1 Phillips head screws.

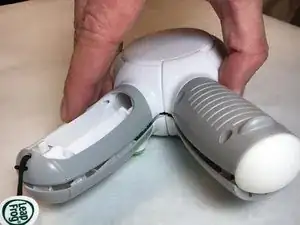

  5. DKD6OiLZUYQyYK4P

    • Separate the top and bottom parts of the controller slightly.

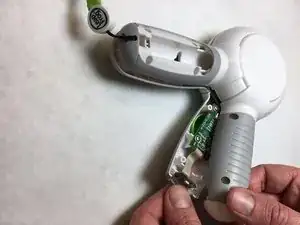

  6. yX1EOlPCAkoVGwuK

    • Slide the cover on the back side of the controller covering the joy stick out of the way.

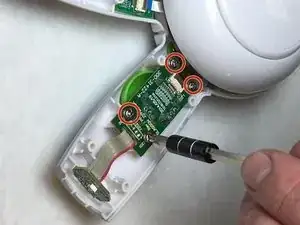

  7. WsXUsIIGgV2QLbGC

    • Use the screwdriver to remove the four 8.7 mm PH1 Phillips head screws.

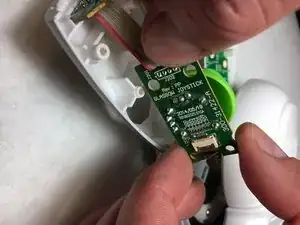

  8. YgA226vwVDDWAtpY

    • Turn and lift the circuit board with button attacked out of the hole. Do not detach the circuit.

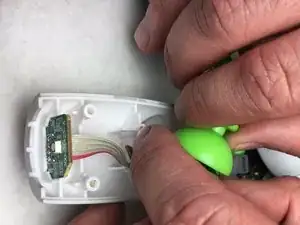

  9. Pf1jMENTHsYD5bqA

    • Hold the circuit board and button and pull the button off.

  10. thhhuBr4udfFnmJC

    • Joystick will now pop off.

    Is there a way to fix the stick drift when I get to this part? Do I replace the stick and or circuit board for my drift issue? Please help.

    hector quiroz -

    Hi, did you find a solution to a stick drift for this controller? Can I buy replacement parts?

    extreme_lifeguard -

Conclusion

To reassemble your device, follow these instructions in reverse order.
