Lenovo 100s Chromebook-11IBY Battery Replacement

Written By: Milton Perez
  • Comments: 0
Lenovo 100s Chromebook-11IBY Battery Replacement

Difficulty

Moderate

Steps

7

Time Required

5 - 10 minutes

Introduction

This guide will show how to remove the battery for the Lenovo 100s Chromebook-11IBY. This removal will allow you to replace or upgrade the battery for your laptop.

  1. 5RF2VN2FNGGVEgti

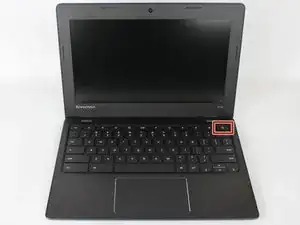

    • Ensure your device is turned off and unplugged.

  2. IISRnNHhRZUKg6fV

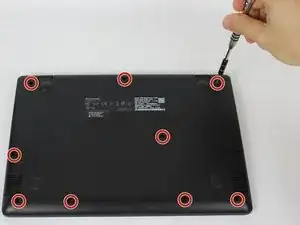

    • Use a Phillips #0 screwdriver to remove the nine 6mm screws from the larger back plate.

  3. XEIZYoau5bgHhoqV
    XEIZYoau5bgHhoqV
    EFPtnEpdPGeuuWeH

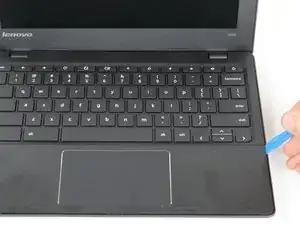

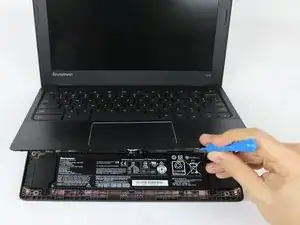

    • Turn your laptop back over, open it, and use the plastic opening tool on the recessed notch to gently pry each side and lift the keyboard plate up.

    • Be careful not to pull keyboard plate out immediately because cables are attached.

  4. 3XKeP3xlKuTNmwPO
    3XKeP3xlKuTNmwPO
    jwj3STjlG3eCV4SZ

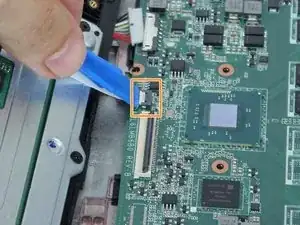

    • Unlock the keyboard ZIF connector to release the keyboard flex cable.

    • To unlock a ZIF connector, use an opening tool or your fingernail to flip up the small, hinged locking flap.

    • Unlock the touchpad ZIF connector to release the touchpad flex cable.

    • Carefully pull both flex cables out of the ZIF connectors.

    • Remove the keyboard plate up and place it to the side.

  5. fdOexkRGrfwwl2IZ

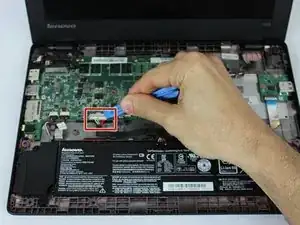

    • Unplug the battery cable by pulling it towards the battery.

    • Pull parallel to the battery, not straight up.

  6. LQBrEJwQWnGQ3LEG

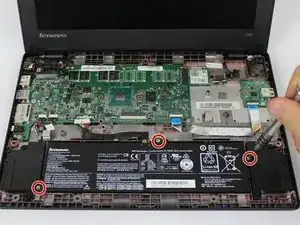

    • Use the Phillips #0 screwdriver to remove the three 6mm screws from the battery.

  7. RgJVX3KAiAnPmSDP

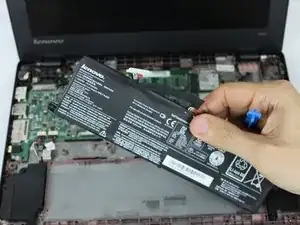

    • Remove the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.

For optimal performance, after completing this guide, calibrate your newly installed battery.

Take your e-waste to an R2 or e-Stewards certified recycler.
