Lenovo IdeaPad 330-15AST Speakers Replacement

Written By: Chloe Powell
  • Comments: 0
Lenovo IdeaPad 330-15AST Speakers Replacement

Difficulty

Moderate

Steps

7

Time Required

25 - 40 minutes

Introduction

Guide to safely and effectively replace the Lenovo IdeaPad 330-15AST internal speakers without damaging the device.

  1. WCIJeGS1GOqHbLtI

    • Remove the 7 mm Phillips screw from the back of the laptop that secures the optical drive in place.

  2. ZNEkgVdPDghFGvEq

    • Carefully slide the optical drive out of the laptop.

  3. 2SxCdkIJEOMFBL6J

    • Remove the twelve 7 mm Phillips screw from the back of the device.

  4. jdULFeK2QsOvsshP

    • Use opening picks or a plastic pry tool to remove the cover on all sides then lift.

  5. 2BhygngvPHRbRGFu

    • Disconnect the speaker cable from the motherboard.

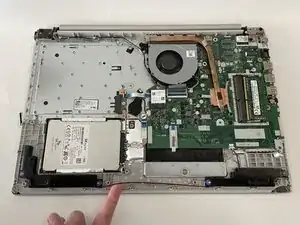

  6. C32JDubhFJXSY6cK

    • Release the cable from the guides at the perimeter of the case.

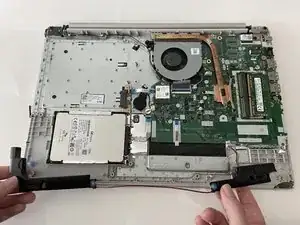

  7. KNYsGWVVJoYjOfYU

    • Remove the speakers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
