Lenovo IdeaPad Flex 3 CB 11M735 Battery Replacement

Written By: Marcos Ramirez Trevino
  • Comments: 0
Lenovo IdeaPad Flex 3 CB 11M735 Battery Replacement

Difficulty

Moderate

Steps

5

Time Required

15 minutes

Introduction

Batteries wear over time. It is not uncommon for the battery to eventually die out. This guide will help you replace the battery of the Lenovo IdeaPad Flex 3 Chromebook (11M735).

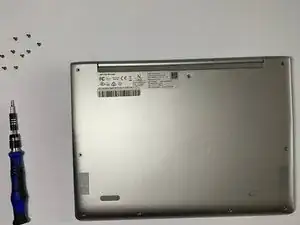

  1. ZLqHEeY1XMonnurt
    ZLqHEeY1XMonnurt
    rTxQBeFbjANnuBan

    • It's best to touch the ground before you start to be sure you won't shock any components.

    • Use a T6 Torx screwdriver to unscrew the nine M2 x 6.5mm screws.

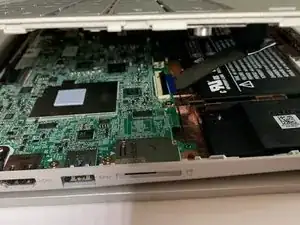

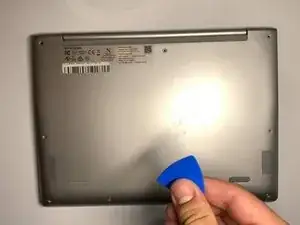

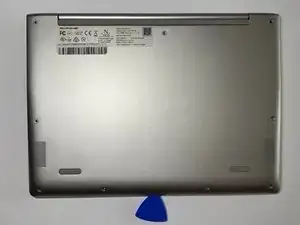

  2. AxBNxDEiaMUqWASQ
    AxBNxDEiaMUqWASQ
    tsSBXA5GkgCVqQLY
    KwhihwROyZBQnlyv

    • Using a plastic spudger, carefully lift the palmrest from the bottom cover.

    • Be careful while removing the keyboard, and unplug the connections.

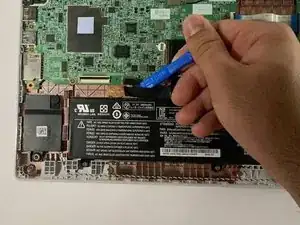

  3. YNFyDcu4Dv4ttPXq

    • Disconnecting the battery from the motherboard.

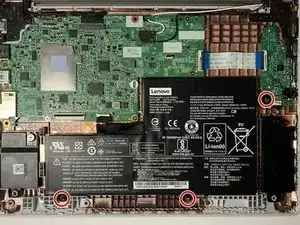

  4. yhFIeu3NkfAUHvbP

    • Use a PH00 screwdriver to remove the 3x(M2x4mm) screws.

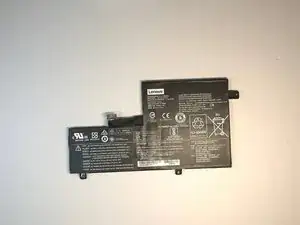

  5. suqo3eAg6WFVU5H6

    • Ensure the replacement battery is right, then follow the steps backward to assemble everything.

Conclusion

To reassemble your device, follow these instructions in reverse order.
