Lenovo IdeaPad Flex 4-1130 Screen Replacement

Written By: Adrian Miranda
  • Comments: 1
Lenovo IdeaPad Flex 4-1130 Screen Replacement

Difficulty

Difficult

Steps

13

Time Required

40 minutes

Introduction

Your screen might need replacement if there are any noticeable cracks on screen or if you are experiencing persistent flickering during use of your Lenovo IdeaPad Flex4-1130.

  1. ethm1CeNfZU5DEZ2

    • Power off your Lenovo Ideapad Flex4-1130 before beginning disassembly.

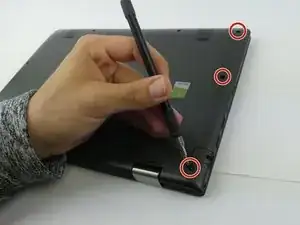

    • Remove the ten 4mm screws from the back panel.

  2. aOdRNYICJtl4CAnt

    • Insert the spudger into the groove work your way around the laptop to separate the bottom from the case.

    • Do not insert the spudger too deep! This could potentially damage a device part.

    It is going to feel like you may have missed a screw but you actually haven't. Just be very careful releasing the back panel as the clips are fairly strong.

    Brian Geisler -

  3. OUNQaEYvMNXU1isQ

    • Remove the connector attaching the battery to the motherboard.

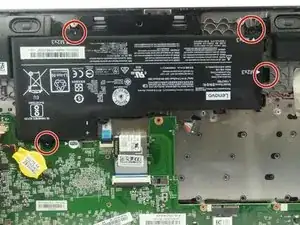

  4. WaNDBij2LYPFQUSq

    • Remove the four 4mm screws on the battery.

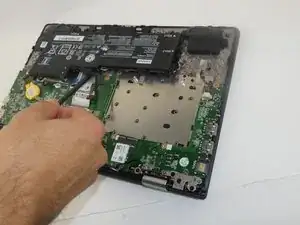

  5. GodmvHLWqvp3fFeD

    • Lift the battery with a spudger and remove.

  6. QFEZLe1ybLOr2Qis
    QFEZLe1ybLOr2Qis

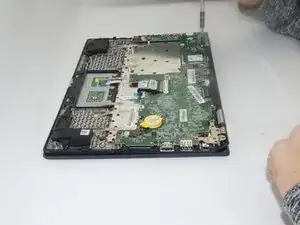

    aF1x22hHAgXHOjl4

    • Remove six 7mm screws.

  7. xCsmVbrNHpDTvHiX
    xCsmVbrNHpDTvHiX

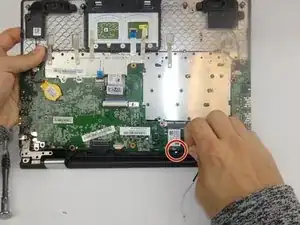

    2NGaMKKAbPqVn1Bd

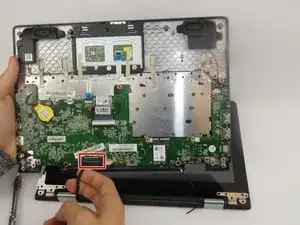

    • Remove two connector cables.

    • Separate the two unhinged parts.

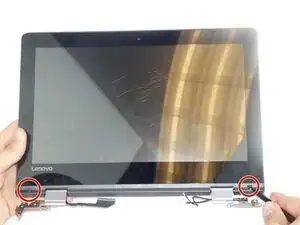

  8. Yj2NPEgWcFDsDyOe

    • Use the spudger to remove the plastic caps, uncovering the screws underneath.

    • Remove the two 6mm screws.

  9. TUgEwLtNGBrjgF26
    TUgEwLtNGBrjgF26
    ACUJoicQyMGkmkoM

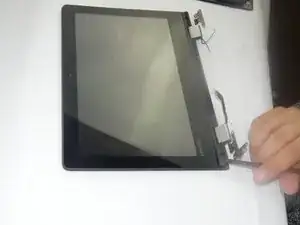

    • Use the black nylon spudger to remove the long plastic covering underneath the screen.

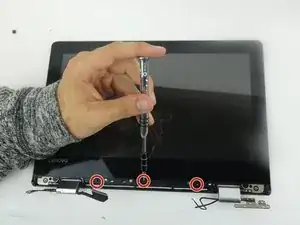

    • Remove three 6mm screws.

  10. UhRBVuBbKmwvWERs
    UhRBVuBbKmwvWERs
    MCsqiJTYYtZYWMKK

    • Use the black nylon spudger to lift and separate the screen from the plastic back cover.

  11. fTWqjGWvM1ZxbF53
    fTWqjGWvM1ZxbF53
    uSikVNwIAQuWqrtf

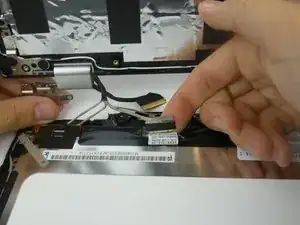

    • Peel off tape and remove the cable.

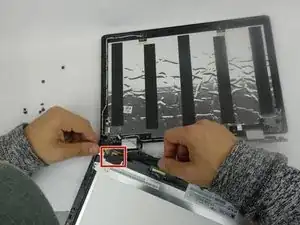

  12. rFpVCLSyAIbILVSH
    rFpVCLSyAIbILVSH
    N1lvApGqWcGVCDC2

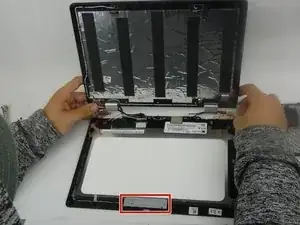

    • Remove the connector chip.

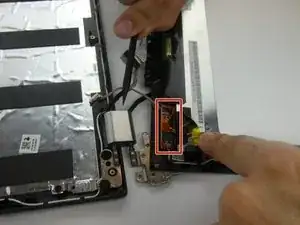

  13. Ym1BrQtHbCRqREGI
    Ym1BrQtHbCRqREGI
    LttUIBVEy5yqxKrQ

    • Peel tape and remove cable underneath.

Conclusion

To reassemble your device, follow these instructions in reverse order.
