Lenovo IdeaPad Flex 4-1470 Touchpad Replacement

Written By: Elijah Ellis
  • Comments: 5
Lenovo IdeaPad Flex 4-1470 Touchpad Replacement

Difficulty

Moderate

Steps

8

Time Required

15 minutes

Introduction

The touch pad is the laptop's on-board mouse analogue, and as such is important for the laptop's operation. To remove and replace it you will need the proper, specific replacement part.

  1. LhxZe4fE54XQPD1Y

    • Ensure your computer is completely OFF before starting this guide.

    • Remove the eight 6 mm screws using a Phillips #0 screwdriver.

    • Remove the two 11 mm screws using a Phillips #0 screwdriver.

    I have to know how long the pins are in the clips that hold the hinges in place. I don’t want to destroy my tablet.

    otlerelron -

    Mine had ten tiny little star screws. Not Phillips.

    Justen Hansen -

  2. kVyGdJF2MWdchreF
    kVyGdJF2MWdchreF
    MZJShKusbnjGgYrJ

    • Pry the back cover off by inserting the plastic opening tool at the hinges and wedging it between the Back cover and the body.

    • Follow along the back edge with the plastic opening tool, lifting the cover off as you go. It is normal to hear snapping/clicking sounds as the back cover is held on by clips.

    • Remove the cover.

  3. 1VYMfnUdaGo61iIf
    1VYMfnUdaGo61iIf
    Ii6KNkPZDShsbPVG

    • Disconnect the battery connector by using a plastic pry tool or your fingers to push the cable right towards the battery.

    • Do not pry or push on the socket itself or you risk damaging the motherboard.

  4. UZN25HHVfolhU6Bi

    • Remove the three 4 mm Phillips #0 screws holding the battery in place.

  5. NXhZSKRwANRrOQNP

    • Lift the battery up and out of the laptop.

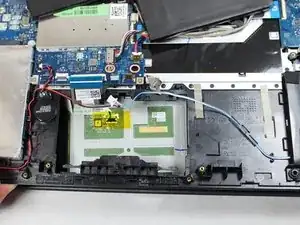

  6. T4dQmIBhPhbNcVkM

    • Locate the touchpad.

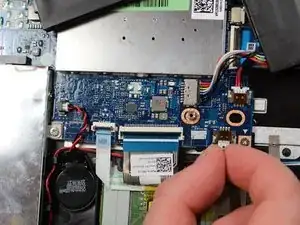

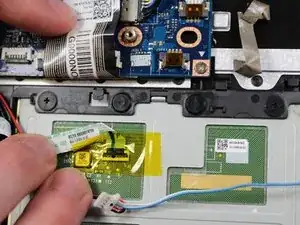

  7. WUSVHsNMrdL1NCZS
    WUSVHsNMrdL1NCZS
    6bdEAQieGDyGQMQI

    • Remove the three ribbon cables surrounding the touch pad.

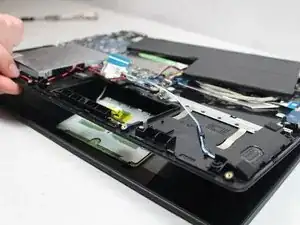

  8. GkoGGSlZcurowhGK

    • Lift the base of the laptop from the screen and gently push the touchpad to remove.

    You forgot about the part where you have to remove the two screws holding the trackpad in place...

    Pine Castle Hardware -

Conclusion

To reassemble your device, follow these instructions in reverse order.
