Lenovo IdeaPad N580 Battery Replacement

Written By: Alex Amorim
  • Comments: 0
Lenovo IdeaPad N580 Battery Replacement

Difficulty

Very easy

Steps

4

Time Required

2 minutes

Introduction

If the device isn't powering on, then the issue may be due to the battery. Follow these steps to replace the battery.

  1. VUyftoeiiAs2A6Jj

    • Turn over the device so that the bottom is facing up. Make sure the hinged side is facing you.

  2. WJMQMhbbqyBGOueJ

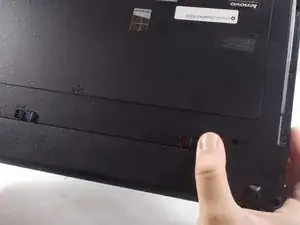

    • Move the right switch towards the right until it clicks in place. You should then see the color red reveal from where the switch was originally.

  3. iZF3GSLFWcjsTRpk

    • Now take your left hand and slide the left switch to the left.

    • This switch will not click in place like the other switch, so make sure to keep your left hand on the switch.

  4. uFWLjwQfSJpInyPV

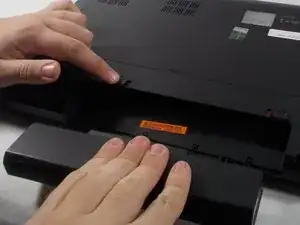

    • Take your free hand and place it on the battery. Gently slide it away from its slot.

Conclusion

To reassemble your device, follow these instructions in reverse order.
