Lenovo IdeaPad U410 Bottom Cover Replacement

Written By: Edric An
  • Comments: 0
Lenovo IdeaPad U410 Bottom Cover Replacement

Difficulty

Very easy

Steps

2

Time Required

2 minutes

Introduction

This guide will show you how to open the bottom panel on your Lenovo IdeaPad U410 using a Phillips #1 and metal spudger.

  1. SjrCeNYo5YHpWadA
    SjrCeNYo5YHpWadA
    4iUW2lLaK1yVQ3nI

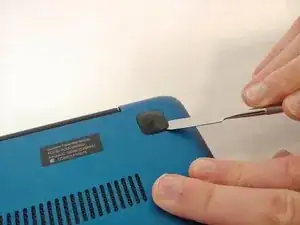

    • Using the metal spudger, remove all the rubber squares on the bottom of the laptop.

  2. geeNC5KDNZCXDP3g
    geeNC5KDNZCXDP3g
    NuuLSVPTpM5Lu2XX
    AFFoAWixoCrDKKjh

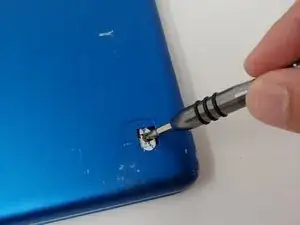

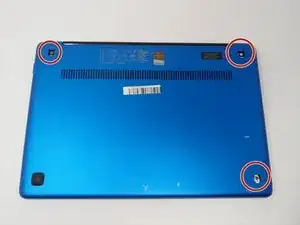

    • Remove the three 6 mm Phillips #1 screws holding the panel on the laptop.

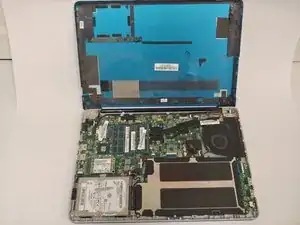

    • Pry the panel from the laptop using your hands or the metal spudger if necessary.

Conclusion

To reassemble your device, follow these instructions in reverse order.
