Lenovo IdeaPad U430 Touch Memory Replacement

Written By: Patrick Ripkey
  • Comments: 1
Lenovo IdeaPad U430 Touch Memory Replacement

Difficulty

Easy

Steps

5

Time Required

10 - 15 minutes

Introduction

For this guide, we will be replacing the RAM on a Lenovo IdeaPad U430 Touch. Once the back of the computer case is off, no tools are necessary for replacement.

  1. XY6SciObRxlKCWdi

    • Power off your computer before you begin.

    • Find and remove the 10 Phillips style body screws on the bottom of the laptop case.

    • Remove 2 screws, 1 located on the left hinge cover and one located on the right hinge cover.

  3. XHupn6TJa2lENlyL
    XHupn6TJa2lENlyL
    2QnQk5eCYnwZCtN4

    • Starting from the front, use a plastic opening tool to separate the bottom of the case from the body of the laptop.

  4. A6BngU1InDVyC6OI
    A6BngU1InDVyC6OI
    OSmKUODkCoTMuytq

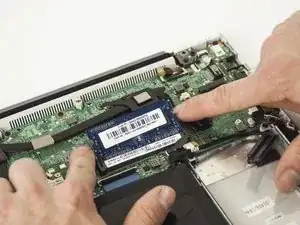

    • Press down and out on the topside of the clips holding the memory in place.

  5. OWGBtDhwEICRrLCU

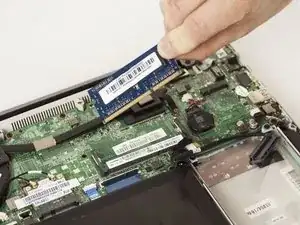

    • Once the clips are free, pull the topside of the memory up, and then remove it from the slot.

Conclusion

To reassemble your device, follow these instructions in reverse order.
