Lenovo IdeaPad U430 Touch Speaker Replacement

Written By: Patrick Ripkey
  • Comments: 0
Lenovo IdeaPad U430 Touch Speaker Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 20 minutes

Introduction

  1. XY6SciObRxlKCWdi

    • Power off your computer before you begin.

    • Find and remove the 10 Phillips style body screws on the bottom of the laptop case.

    • Remove 2 screws, 1 located on the left hinge cover and one located on the right hinge cover.

  3. XHupn6TJa2lENlyL
    XHupn6TJa2lENlyL
    2QnQk5eCYnwZCtN4

    • Starting from the front, use a plastic opening tool to separate the bottom of the case from the body of the laptop.

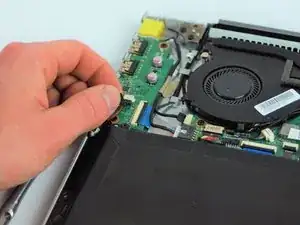

  4. DwKHtCqXZJJrBINA

    • Disconnect the speaker cable connectors from the motherboard and/or USB board.

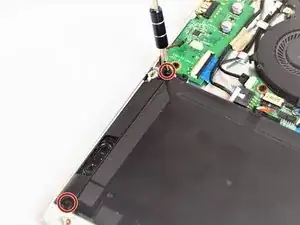

  5. V3tGopuUMBmIvEGG
    V3tGopuUMBmIvEGG

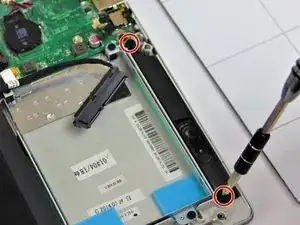

    IaaPpO5ajwdEdUbT

    • Unscrew the two 6.5mm screws from each speaker with a PH1 Phillips head screwdriver.

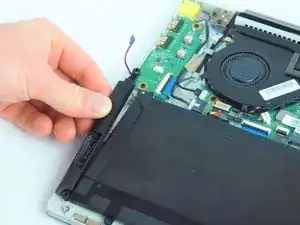

  6. 2eNK1RTPtFq4QYOL
    2eNK1RTPtFq4QYOL

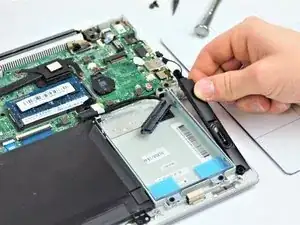

    CiCiAKAf5DQ3D2vY

    • Remove and replace the speaker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
