Introduction
The Lenovo IdeaPad Y410P uses a standard laptop hard drive, so it is simple to replace. Hard drives are often easily accessed, and this one is no different. This hard drive can be replaced in just 2 simple steps.
Tools
-


-

Slide the left battery lock to the unlock position and release.
 -

Slide the right battery lock to the unlock positon and hold it in place.

 -

 -


-

While holding the right battery lock in the unlock position, slide the battery carefully out of the laptop and set it aside.

 -

 -


-

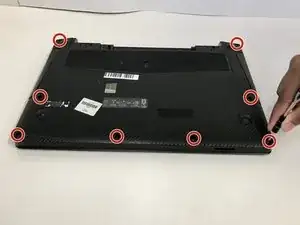

Using the Phillips #0 screwdriver, remove the eight 8mm screws that fasten the bottom cover.
 -

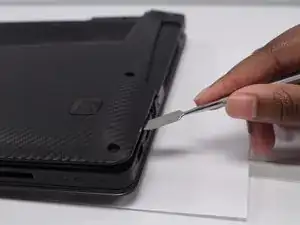

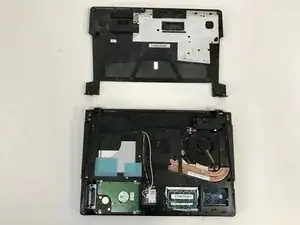

Lift bottom cover off using a metal spudger and set it aside.

 -

 -


-

Using the Phillips #0 screwdriver, remove the two 3mm screws at the end of the hard drive bracket.
 -

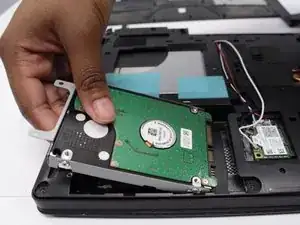

Slide the hard drive out of its seat.

 -


To reassemble your device, follow these instructions in reverse order.
