Introduction
Use this guide to replace the digital board.
-
-
Look at the back of the tablet and locate the speakers on top of the rear cover.
-
There is a smaller plastic cover that runs across the top of the device.
-

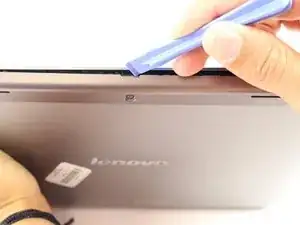

Wedge the blue opening tool, under the middle of the cover as shown, then push up and the cover will pop off.
-
-
-

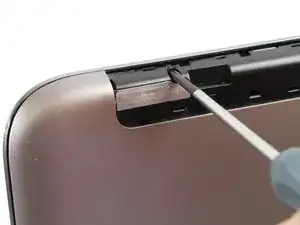

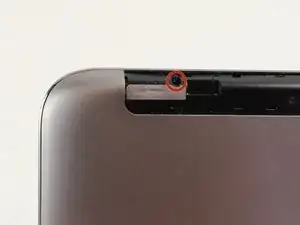

Once it is unscrewed, remove the rear cover
-
This may take a little force to get off but with enough force it should pop right off
-

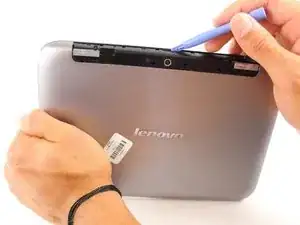

Use a blue opening tool to pry it open
-

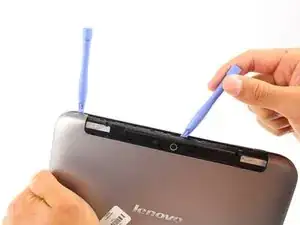

Slide the tool to one corner then grab another tool and slide it to the opposite corner
-
Pull the cover up and it will come off
-
-
-

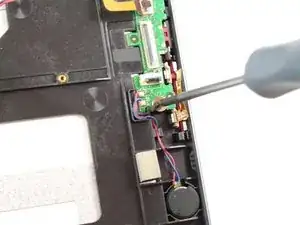

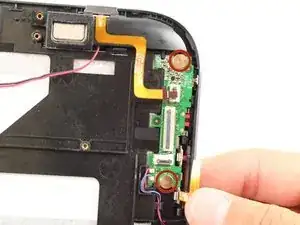

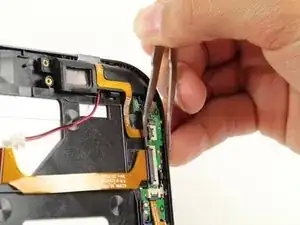

Use the tweezer tool to flip up the three small plastic locks attached to the digital board.
-
Then, slide newly exposed ribbons out.
-
To reassemble your device, follow these instructions in reverse order.
