Introduction
This laptop allows you to use any 2.5” Hard Drive (HDD) or Solid State Drive (SSD) with a SATA3 connection.
Parts
-
-

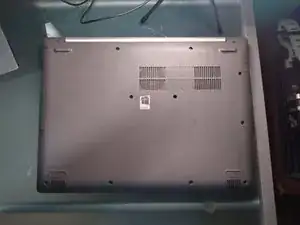

Flip the computer.
-

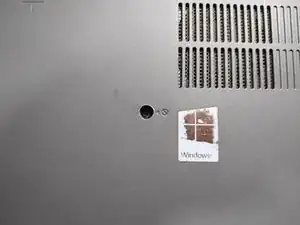

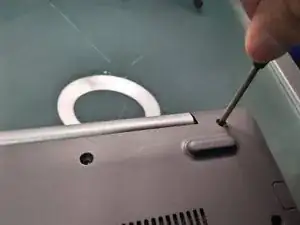

Using a Phillips screwdriver, remove the screw that has an icon like the one in the picture.
-

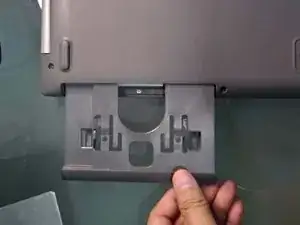

Slide the unit out from the side, until it is completely out.
-
Put it aside.
-
-
-
Unscrew the remaining 12 screws. Make sure you keep them in order.
-

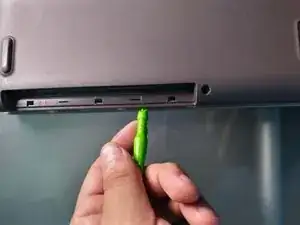

Using a plastic spudger, loosen the clips located under the disk drive.
-
Keep on doing this down the edge, until the base starts to come loose.
-

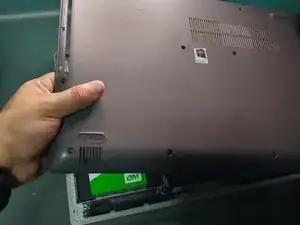

Remove the casing and set it aside.
-
-
-

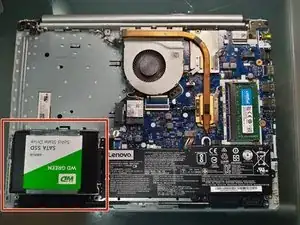

Locate the disk drive.
-

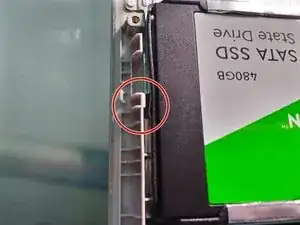

Using the spudger, loosen the pin holding the disk drive in place.
-

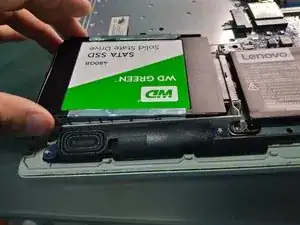

Remove the existing unit pulling gently and diagonally, as seen in the picture.
-
-
-
Remove the previous disk drive from the flexible protector.
-
Place the new disk, making sure that the port is in the same position as the previous one.
-
Fit the bumpers into the holes that the disk has on both sides.
-
Now, reassemble the laptop by following steps 1, 2, 3 and 4 in reverse and Congrats! You just installed your new hard drive.
Remember: you will have to reinstall any Operating System to make use of your laptop. Have an USB Thumb drive with a Windows, Linux or any other OS of your choice at hand.
