Lenovo Ideapad 320-15ABR Fan Replacement

Written By: Katie Marie Schoeling
  • Comments: 0
Lenovo Ideapad 320-15ABR Fan Replacement

Difficulty

Moderate

Steps

14

Time Required

10 minutes

Introduction

If you are experiencing troubles with your fan and it needs to be replaced you can locate it inside the laptop.

  1. i2OWcAbPmAGRGSND

    • Before you proceed, make sure your computer is turned off and is not connected to any power source.

    • Remove the single 7 mm Phillips #1 screw securing the optical drive.

    • Be sure to store the screws carefully as they are easy to lose. A magnetic project mat is recommended

  2. 5efQEBK35P4UNvZ5
    5efQEBK35P4UNvZ5
    krNoDHkMRA2ZJSfv
    wA11hPLxZRoSWDMV

    • Carefully remove the optical drive bracket by pulling the bezel away from the laptop.

  3. QafRtKMYGCtUPJge
    QafRtKMYGCtUPJge
    6osb1LdBNDTvFmny

    • Using the Phillips #1 screwdriver, remove the twelve screws around the back panel from the laptop.

  4. eOGgCw42XoGhIWWw
    eOGgCw42XoGhIWWw
    QQKRGI4YpPJcKhMW
    FsKr6Q66LBahhyIi

    • Use an opening tool to pry out the back cover.

  5. AJC2jGAuHabCs2Kg
    AJC2jGAuHabCs2Kg
    kc3iNKCr1JJXLvNg
    bkQYfatVYgex51Py

    • Remove the back panel by pulling it up and away from the laptop.

  6. yaOaY6IEvBdxJAOO

    • Remove the four 6mm screws using the Phillips #1 screwdriver.

  7. wvdWtvYLjnYxKNTx
    wvdWtvYLjnYxKNTx
    slkXw5KjQI2DubWD

    • Disconnect the battery connector by pulling toward the battery parallel to the motherboard.

  8. EQaSJ6a4HTGuRa6a

    • Remove the battery.

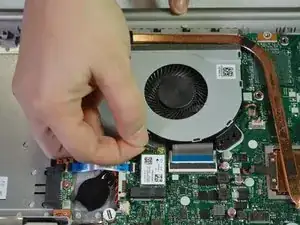

  9. VVNBuMa11eiqKTNZ
    VVNBuMa11eiqKTNZ
    53Twr1SAonCfgAyU

    • Disconnect black and grey wires by simply giving them a light tug.

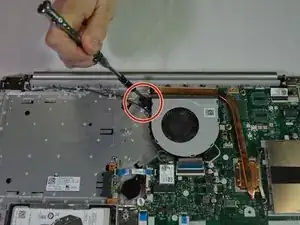

  10. jCBTqOylbH5B1xFp

    • Remove the 6mm Phillips #1 screw connecting the fan to the laptop.

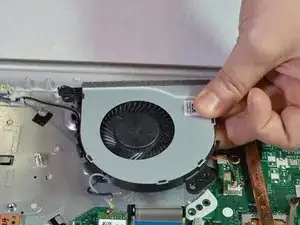

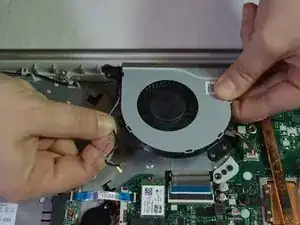

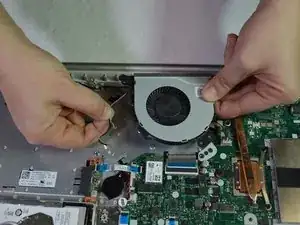

  11. FJtKPpN2P6pPglyg
    FJtKPpN2P6pPglyg
    RVplJwkqaJvpiEAr
    S4txnT4BKa6YxcCM

    • Lift the fan slightly and straight upward and unwind the black and grey wires from the fan.

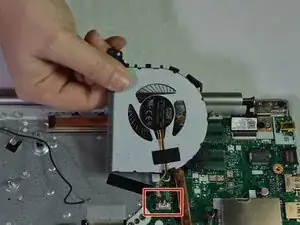

  12. brnOU6yEAB6vgeag

    • Identify the red, black, yellow, and brown wire coming from the back of the fan connecting to the motherboard with a white connector piece.

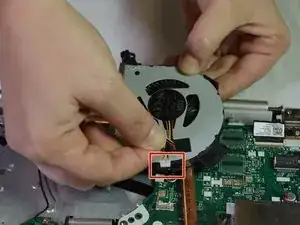

  13. gJtl2BV1VXdp6NAm
    gJtl2BV1VXdp6NAm
    GaAbmmtLl4vikEuM

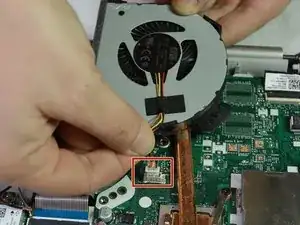

    • Slowly pull and wiggle the white connector piece until it comes loose from the laptop.

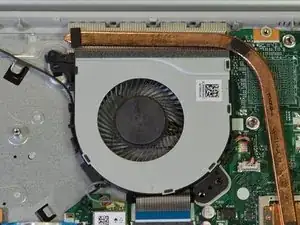

  14. f2FCLgXrNCfKAbg5

    • Replace the new fan.

Conclusion

To reassemble your device, follow these instructions in reverse order.
