Lenovo S20-30 Keyboard Replacement

Written By: ILEANISSE SOTO
  • Comments: 1
Lenovo S20-30 Keyboard Replacement

Difficulty

Moderate

Steps

10

Time Required

10 minutes

Introduction

Keyboard may need replacing for several reasons ranging from spilling something on your keyboard to mulitple keys not working properly. You will need a new standard replacement keyboard for Lenovo S20-30 to continue the replacement. Keyboards costs around $22-$50. This guide shows step by step how to replace your Lenovo S20-30 keyboard. Make sure to carefully read the steps and keep track of parts dissassembled so they are not lost.

  1. FOFtvSPpIBFbjWPE

    • Flip the Lenovo S20-30 over so that the bottom panel is facing upward.

  2. ZyM6HiIOG4jlbhUl

    • Slide the manual battery latch to the unlock position, so that the red is showing.

  3. djeZO3DQ3PCeqsqk
    djeZO3DQ3PCeqsqk
    P4FSmCTQiEVXkoYG

    • Slide and hold the spring-loaded battery latch on the other side (right) while sliding the battery out of the computer.

    • Grab new Lenovo S20-30 battery for replacement.

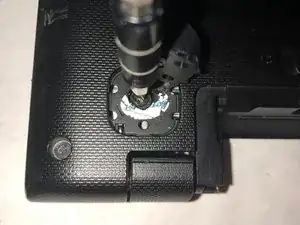

  4. tL4ZmEWDMeHlcw6o
    tL4ZmEWDMeHlcw6o
    RakmwKHLD3eOxFtN
    6LyEnEhBYsELZWvD

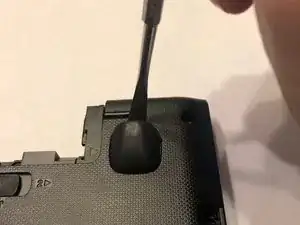

    • Remove the two front rubber feet using a long metal spudger.

    • Use your Phillips #0 screwdriver to remove the two M2.5 x 5mm flat-head screws located underneath the pads.

  5. 6cqe6ldvVUxkYh26

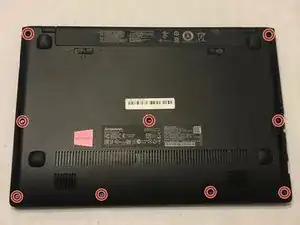

    • Use the Phillips #0 screwdriver to remove the nine M2 x 4mm flat head screws located on the outer edges on the back of the laptop.

    • Make sure to keep these screws separated from future screws that will be disassembled throughout this process.

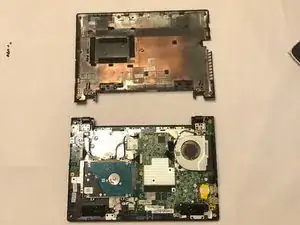

  6. QLYr2SLXU5MWvmJW
    QLYr2SLXU5MWvmJW
    BcNMM3NGSasihtTV

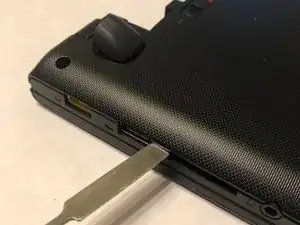

    • Use the long metal spudger to pry open the bottom half of the laptop.

    • Gently lift the cover off to reveal the motherboard.

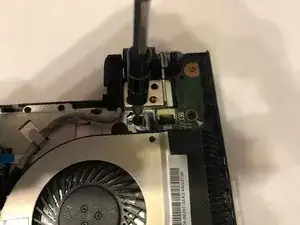

  7. 5QKoljFqWm5jQfDi
    5QKoljFqWm5jQfDi
    covFK4DrSSLGZDZG

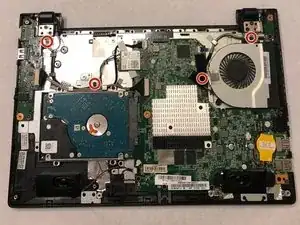

    • Remove the four M2 x 3mm flat-head screw using a Phillips #000 screwdriver.

  8. jMWI3QiKMeSXrHde
    jMWI3QiKMeSXrHde
    yG1fdrmVkOwAp6pJ

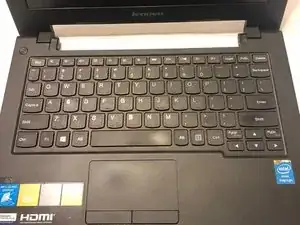

    • Flip over laptop and open the lid to have access to the keyboard.

    • Use a plastic opening tool to pry apart the keyboard.

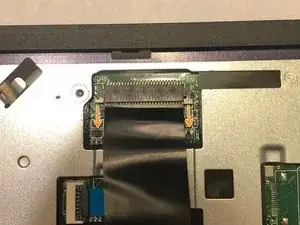

  9. Rn6OITlQDJC6kJVV
    Rn6OITlQDJC6kJVV
    LcgOsKxLxZwORgjH
    niARZClGvXlZFPpX

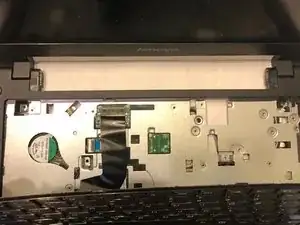

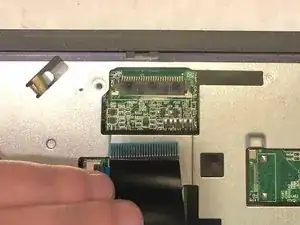

    • A connector is attached to the keyboard.

    • Remove it by gently pulling it outward.

  10. jgF6UrPbcHXDFMu1

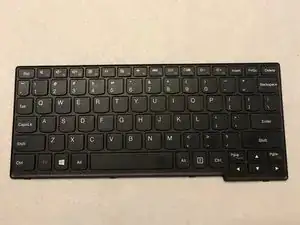

    • Grab replacement keyboard to insert back into place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
