Lenovo Tab 2 A10-70 Motherboard Replacement

Written By: Ricardo Montanez
  • Comments: 16
Lenovo Tab 2 A10-70 Motherboard Replacement

Difficulty

Moderate

Steps

14

Time Required

30 minutes

Introduction

The motherboard controls all of the processes of the device and if it is faulty must be replaced otherwise the device will not operate.

  1. TNN1xTXrxyWYtkZQ
    TNN1xTXrxyWYtkZQ
    mk3NyfyfkuHUqKK1

    • Before removing the battery, make sure the device is powered off

    • Use a plastic opening tool to pry open the back cover of the tablet.

    • The second picture shows the tablet with the back removed.

    Removing the cover was a struggle (for me, a newbie). Took 10 minutes+. I don’t have a plastic tool and the small screwdriver left marks. But a non-functioning tablet has zero value so …

    Frank Harvey -

  2. ZnKeOZJq5JTX2Oke

    • Remove the tape that secures the ribbon cable.

    • Use precision tweezers if the tape cannot be removed by hand.

    C’est inutile !

    Jean-Maurice Leconte -

    FWIW, my lenovo looks a bit different. I purchased it in the spring of 2019. The battery specs reveal differences too. No biggie…

    Frank Harvey -

    The unit shown in this fixit session has a 26.6 wh battery while my April 2019 tablet claims only 18.7 wh. My unit’s battery is nearly square and is not held down by the screwed, metal ring shown in your photos.

    Frank Harvey -

  3. bctgyUdWx2h6LeLT

    • Handle ribbon cables with care so it does not rip or tear.

    • Carefully remove the ribbon cable from the power button connector.

    • To remove the cable, push the clamp on the connector up and pull gently.

    The clamp is on the opposite side of where the cable inserts. It is hinged to pull up vertically to the right toward the cable.

    Carl Bezanson -

    The discussed cable doesn’t even exist on my April 2019 Lenovo. Good thing b/c a later comment indicated problems replacing the left side of that cable.

    Frank Harvey -

  4. NSDIHJfLKG1OVoNJ

    • Remove the following screws securing the metal frame holding the battery.

    • Five 2 mm Philips screws.

    • Use either the Phillips #00 or #000 bit to remove the screws.

  5. AVVtnVKCbLqeEjrW
    AVVtnVKCbLqeEjrW
    ITYmDtXrmfcNXXcI

    • Remove the grey tape.

    • Unscrew the hidden 2mm screw using the Phillips #000 drill bit.

  6. f2dpfh3ETbgoEhU6

    • Remove the second piece of tape from the other ribbon cable connected to the battery.

    Inutile et risqué !

    Jean-Maurice Leconte -

  7. MlTYANePmBTe2HRl

    • Remove the screws securing the battery connector cover.

    • Two 2mm Phillips screws.

  8. 4VJfQ62xxVTTZAbn

    • Once the screws are removed, remove the metal cover shown.

  9. DgDfvvQjtXY5OlgH

    • Gently remove the following:

    • Disconnect the battery ribbon cable.

    It pulls up vertically and not horizontally.

    Carl Bezanson -

    On my April 2019 model (TB-x104F), there’s no screwed, metal ring. The battery is, instead lightly glued to the plastic base. There are 2 ‘ramps’ in the plastic on what would be the right side of your photo. I moved the unit to my outdoor barbeque in case mangling the lithium battery started a fire. I pushed my largest, flat blade screwdriver down each ramp, taking turns. Gradually I lifted the battery out. It looks curved and probably broken. I took the tablet inside and left the battery in the bbq.

    Frank Harvey -

  10. W65c4TI5LyLhyCtN

    • Once the battery ribbon cable is detached, carefully remove the battery.

  11. vDQcuhMd31PqjtTB

    • Remove the following screws using the Phillips #000 screwdriver.

    • Eleven 4 mm screws in total.

  12. swEWCGA5tFQoBv5G
    swEWCGA5tFQoBv5G
    VJiPxuNV6WeLVRUf

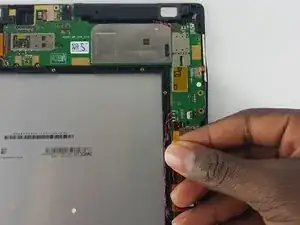

    • Remove the strip from the center right of the device on the motherboard.

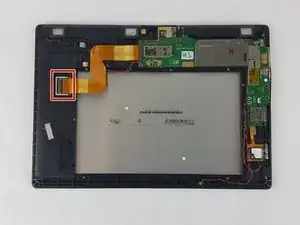

  13. lx5iCyL5yAmB3PWN

    • Remove the larger strip on the upper-left on the device by lifting up the clip that holds it in place and gently remove it.

  14. qdjOYbvJWxVEif2h
    qdjOYbvJWxVEif2h
    nQCsDcfZ6PKVOhVR

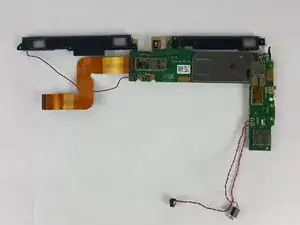

    • The speakers of the tablet are connected to the motherboard.

    • Parts of the motherboard are secured to the frame of the tablet with adhesive. Gently pry up to remove from the tablet.

    • The wire connected to the motherboard can be removed by lifting them from their shown slots.

    • You have now removed the motherboard .

Conclusion

To reassemble your device, follow these instructions in reverse order.
