Lenovo ThinkPad L490 Lower Case Replacement

Written By: Connor
  • Comments: 0
Lenovo ThinkPad L490 Lower Case Replacement

Difficulty

Moderate

Steps

2

Time Required

3 minutes

Introduction

Use this guide to replace the lower case on your Lenovo ThinkPad L490.

  1. JGckEXbUe4EAloIb
    JGckEXbUe4EAloIb
    FGlSVVeyLuuLeoUD

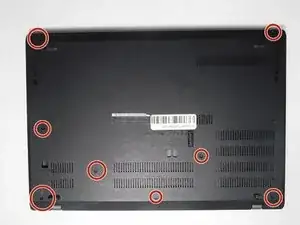

    • Completely shut down your device and disconnect any peripheries before beginning.

    • Lay the laptop down with the lower case facing up.

    • Use a Phillips #00 screwdriver to remove eight 3 mm screws that secure the lower case.

  2. pmHYUBvt1LJDGkMD
    pmHYUBvt1LJDGkMD
    SnoACBKapOL26FrR

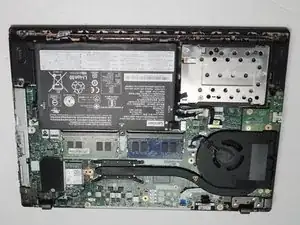

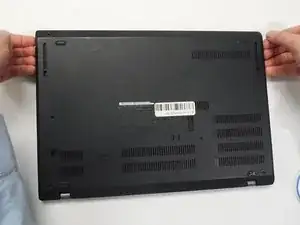

    • Lift the lower case up and off of the chassis.

    • If necessary, insert an opening pick into the gap between the lower case and chassis and pry around the entire perimeter until the lower case fully releases.

Conclusion

To reassemble your device, follow these instructions in reverse order.
