Introduction
This guide explains how to replace the screen in a Lenovo ThinkPad T430s. The ThinkPad T430s screen has a native resolution of 1600 x 900 pixels. It also has a matte finish and a LED backlight.
Physically damaging your ThinkPad causes injury to the screen. You should replace your screen if you notice cracks, black spots, distortion, or discoloration.
Parts
-
-
Flip your ThinkPad on its back.
-
In the bottom left corner of your ThinkPad, slide the lever to the left. Hold the lever there.
-
Use your other hand to lift the battery up by prying the notch to the left of the lever.
-
Tilt the battery up and remove it from the ThinkPad.
-
-
-
Rotate your ThinkPad so the back side faces you.
-

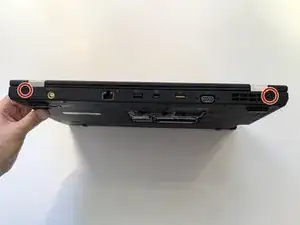

With the Phillips #1 screwdriver, remove the two 70 mm screws in the right and left corners. These may be covered by plastic covers.
-
Open the ThinkPad so the screen faces up. Lift the screen from its hinges.
-
-
-
With the Phillips #0 screwdriver, remove the two 50 mm screws securing the plastic display case.
-
Wedge the flat end of the spudger in between the display case and the screen. Unsnap the top case from the bottom piece holding the screen.
-
Remove the case and set it aside.
-
-
-

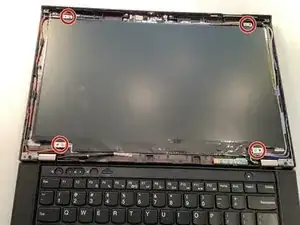

Unscrew the four 30 mm screws holding the screen to the case.
-

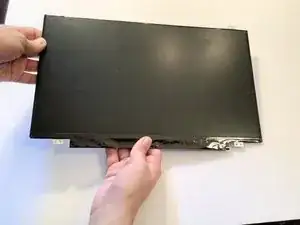

Lift the screen out of the case.
-

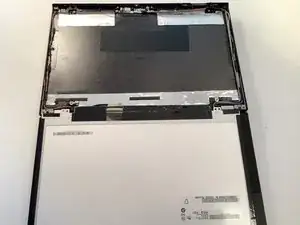

Flip the screen over.
-
-
-

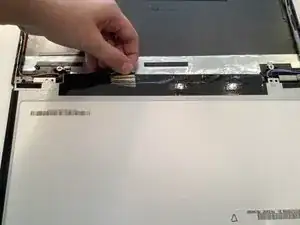

Peel away the tape holding the cable down with the flat end of the spudger.
-
Pull the cable out of its socket.
-
To reassemble your device, follow these instructions in reverse order.
