Lenovo ThinkPad T530 Optical Drive Reader Replacement

Written By: Albert Stoynov
  • Comments: 0
Lenovo ThinkPad T530 Optical Drive Reader Replacement

Difficulty

Easy

Steps

5

Time Required

30 seconds - 2 minutes

Introduction

Follow this guide to replace the CD/DVD (Optical Drive) Reader in your Lenovo Thinkpad T530.

  1. 2PrjuIlkIpDCKFeI
    2PrjuIlkIpDCKFeI
    NmufGfTBGGZQT1Tb

    • Ensure that the laptop is disconnected from the wall charger, and that the laptop is entirely powered off before following any of the steps below.

    • Flip your laptop upside down, so that the keyboard is facing down.

  2. taReXrsbNj14l1iu
    taReXrsbNj14l1iu
    GoFyZALGIY3b6k1d

    • Locate the latch located on the battery near the top of the laptop.

    • Using your finger, slide the latch to the right-most (Unlocked) position.

    • None of this should require an exhuberant amount of force.

  3. OYXXXGYitNL2LT4B
    OYXXXGYitNL2LT4B
    HPEmEPkAkT63R51G

    • You can now pull the battery away from the laptop. When pulling the battery out, ensure to pull it out straight.

  4. VTvO2VFJSkJMx1CS
    VTvO2VFJSkJMx1CS
    yOhSdbynnqtuUQDm
    pG5TkcZdAHNRHYfp

    • Locate the locking switch, highlighted in red. Move the switch up, to the unlocked position.

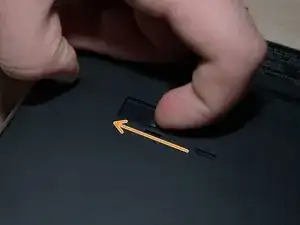

    • Locate the release switch, highlighted in orange. Move the switch to the left, to the release position.

  5. ju1LfWKuJmhZ6xAC
    ju1LfWKuJmhZ6xAC
    vucYb352VhNXpCwg

    • The Optical Drive should eject out of its slot, and you should be able to pull it out of the slot entirely.

Conclusion

To reassemble your device, follow these instructions in reverse order.
